Stainless Steel Pipe Caps Vs Pipe Plugs Key Differences

1. Introduction

When it comes to sealing the end of a pipe, two stainless steel pipe fittings often come into play: stainless steel pipe caps and stainless steel pipe plugs. Both are designed to close off pipelines and prevent leakage, contamination, or mechanical damage. While they may serve similar purposes, these components differ in structure, function, connection method, and usage.

Understanding the difference between a cap and a plug is critical for anyone working with pipe sealing solutions. Choosing the wrong fitting could lead to pressure failure, system inefficiency, or costly rework. This guide will help engineers, maintenance teams, and procurement managers decide when to use a pipe cap and when a pipe plug is the better choice.

2. What Are Stainless Steel Pipe Caps?

A stainless steel pipe cap is a type of pipe end fitting used to seal the external opening of a pipeline. It is typically mounted at the end of a pipe to block the flow completely, either permanently or temporarily. Pipe caps are often used in high-pressure systems, especially where long-term closure is required.

Common Features:

• Material Grades: TP304, TP304L, TP316, TP316L, 321, Duplex S31803, S32750, etc.

• Manufacturing Standards: ASME B16.9, GB/T12459, DIN, JIS

• Types:

  • Butt weld pipe cap (welded to the pipe end)

  • Socket weld pipe cap

  • Threaded cap (female thread)

  • Seamless pipe cap (for sanitary or pressure-critical systems)

Applications:

• Petrochemical and chemical processing

• Food and beverage pipelines

• Water treatment and medical gas pipelines

• Shipbuilding and offshore projects

• Nuclear and thermal power industries

These corrosion-resistant pipe fittings are ideal for systems requiring long-term, leak-proof protection, and are often fabricated from ASTM A403 WP316 or other high-grade stainless materials.

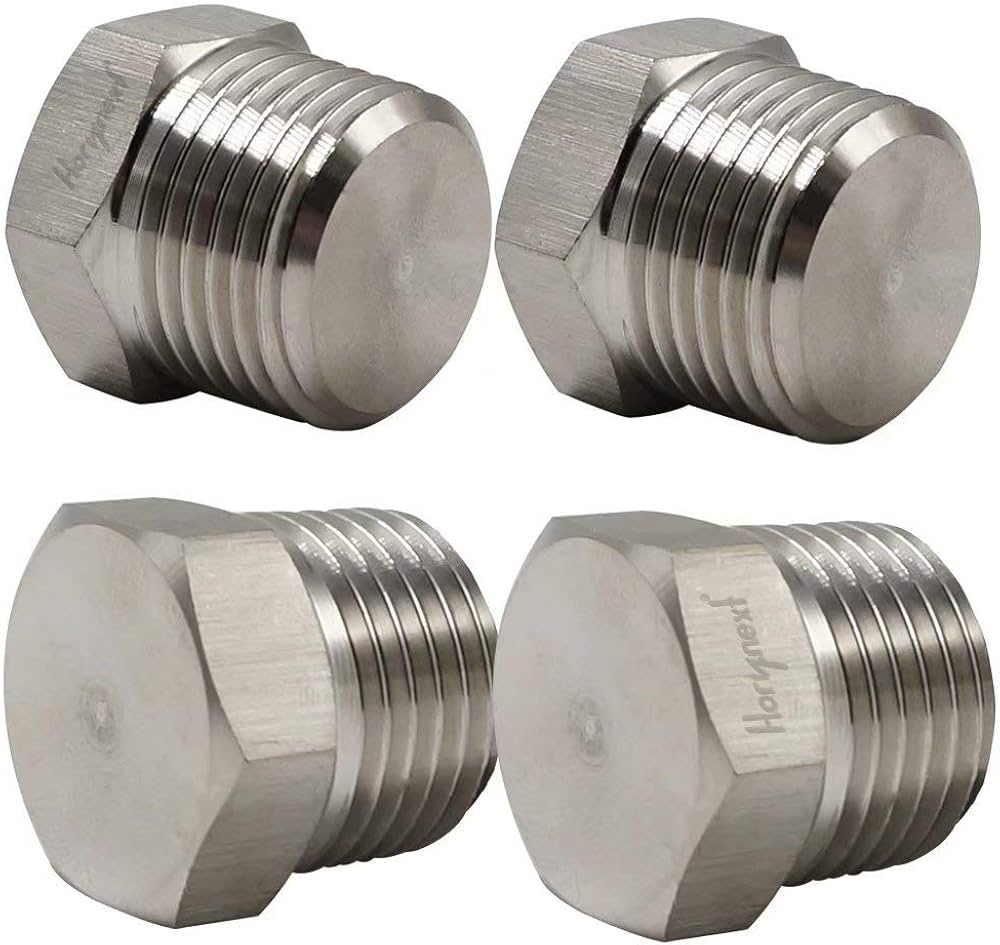

3. What Are Stainless Steel Pipe Plugs?

A stainless steel pipe plug is a fitting used to close off the internal opening of a pipe or fitting. It is commonly threaded and screws into a port, tee, valve, or other fitting. This makes it ideal for situations requiring temporary sealing or future expansion points.

Common Features:

• Connection: Male threads such as NPT, BSPT, or metric threads

• Standards: ASME B16.11, B1.20.1

• Shapes:

  • Hex head plug

  • Square head plug

  • Tapered thread plug

• Materials: TP304, TP316, brass, carbon steel

Applications:

• Hydraulic and pneumatic systems

• Pressure testing ports

• Pipe assemblies requiring periodic disconnection

• Secondary access ports on process piping

Threaded pipe plugs offer convenience in applications where disassembly, inspection, or cleaning is necessary.

4. Key Differences Between Cap and Plug

While both stainless steel pipe caps and stainless steel pipe plugs serve to seal off piping systems, their differences lie in the structural design, sealing mechanism, connection method, pressure suitability, and intended application. Choosing between them requires a clear understanding of how each functions in a given piping environment.

4.1 Basic Structure

Pipe caps are typically end-closure components that fit over the outside of a pipe to terminate the pipeline completely. They are usually domed or hemispherical in shape, often with a short cylindrical extension (straight length) to accommodate welding or threading.

Pipe plugs, on the other hand, are inserted into the inside of a pipe or fitting. They typically feature male threads and are designed to be tightened into a female-threaded port, tee, valve body, or manifold opening.

The fundamental structural difference:

• Cap = covers the external pipe end

• Plug = inserted into an internal threaded opening

This difference in direction of connection has significant implications for sealing method, installation process, and maintenance.

4.2 Function

A pipe cap serves as a permanent or semi-permanent closure. It’s commonly used at the end of process lines, welded in place to prevent any fluid, gas, or particle movement. In sanitary and high-purity systems, seamless or butt weld pipe caps help achieve a hygienic seal with no internal crevices.

A pipe plug, in contrast, is used for temporary or modular closure. It’s frequently employed to seal off unused ports, provide access for future testing, or allow for disassembly without requiring cutting or grinding.

Use-case distinction:

• Pipe Cap: Long-term sealing with minimal disconnection intent.

• Pipe Plug: Short-to-medium term sealing with expectation of removal.

4.3 Connection Method

Pipe caps are connected via:

• Butt welding (for high-pressure systems; aligns with ASME B16.9)

• Socket welding (used in smaller diameter piping)

• Threaded ends (female NPT or BSPT for easy disconnection)

• Seamless press fit (less common; for sanitary tube applications)

Pipe plugs are installed using:

• Male threads (standard options: NPT, BSPT, metric)

• Tapered threads for pressure-tight engagement

• Some plugs include hex or square heads for wrench tightening

• Optional O-ring seals for enhanced leak protection in hydraulic systems

Thread engagement type affects sealing ability, torque load, and corrosion resistance. Improper threading may lead to cross-threading or thread galling in stainless steel applications—an important consideration in plug selection.

4.4 Materials & Pressure Ratings

Stainless steel pipe caps are typically manufactured from materials like ASTM A403 WP304, WP316, WP316L, WP321, S31803, and S32750, depending on corrosion resistance and temperature requirements. Duplex and Super Duplex options offer enhanced mechanical strength and pitting resistance for offshore or aggressive chemical environments.

Because caps are often welded, they can tolerate higher system pressure and are preferred for critical pressure-retaining terminations.

Pipe plugs may also be constructed from stainless steel grades like TP304 or TP316, but due to the threaded nature of their seal, they are more sensitive to thread wear, galling, and pressure fluctuations. Pressure class for threaded plugs depends on the threading standard and plug material, but generally:

• NPT plugs conforming to ASME B16.11 may withstand pressures up to 6000 psi for forged stainless steel in Class 3000 systems.

Design engineers should always match plug pressure rating with system specifications, especially when used in hydraulic or pneumatic circuits.

4.5 Application

This table illustrates how the functional roles of caps and plugs differ within the pipeline lifecycle—from fabrication to testing to operation and maintenance.

4.6 Shape & Assembly

Pipe caps come in several forms, including:

• Elliptical (EHA/EHB)

• Hemispherical

• Dish end

• Flat caps
  Each is designed to accommodate pressure distribution, ease of welding, or specific pipe end requirements.

Their assembly often involves:

• Pre-machined beveling

• Butt weld joining

• Pickling, passivation, and surface finishing for corrosion resistance (e.g., sandblasted matte finish)

Pipe plugs typically have:

• Hex heads for wrench access

• Square heads for compact tool engagement

• O-ring seats for improved sealing
  Some variants are reusable and can be removed and retorqued multiple times.

Surface treatments for plugs may include:

• Electropolishing (in sanitary service)

• Passivation (to enhance chromium oxide layer for corrosion resistance)

Installation torque must be properly managed for threaded plugs to avoid thread galling—especially in stainless steel-to-stainless steel connections.

5. Caps and Plugs: When to Use Which One?

Choosing between a stainless steel pipe cap and a pipe plug isn’t just about sealing a pipe—it’s about matching the fitting to your system’s operational demands, future maintenance needs, and installation environment. Below is a detailed guide to help engineers, project managers, and procurement professionals make informed decisions based on technical and practical considerations.

Quick Selection Tips for Procurement:

When to Use a Stainless Steel Pipe Cap

Select a pipe cap when your system requires:

1. Permanent Pipe Termination
Pipe caps are ideal for closing the end of a pipeline that will not need to be reopened. Common in final stages of welded pipe systems where a complete seal is needed.

2. High-Pressure Sealing Capability
Butt weld pipe caps can withstand high internal pressure and external mechanical loads. Their seamless connection makes them suitable for pressure-rated systems in petrochemical or power generation industries.

3. Hygienic or Sanitary Requirements
In applications such as food processing, pharmaceuticals, or ultra-pure water systems, seamless pipe caps offer a smooth, crevice-free surface that is easy to clean and sterilize—critical for preventing contamination.

4. Corrosion Resistance in Harsh Environments
When pipelines are exposed to aggressive chemicals, saltwater, or extreme temperatures, ASTM A403 WP316 or Duplex stainless steel pipe caps ensure long-term performance without corrosion or pitting.

5. Flush Appearance for Insulated or Buried Piping
The domed shape of a pipe cap creates a smooth outer profile, which is especially useful in insulated systems or buried pipelines where sharp edges are undesirable.

6. Structural Closure in Large-Diameter Systems
For pipe sizes DN100 and above, custom-manufactured pipe caps offer secure sealing without relying on threaded interfaces that may weaken under thermal expansion or vibration.

When to Use a Stainless Steel Pipe Plug

Choose a pipe plug in scenarios that require:

1. Threaded Port or Branch Outlet Closure
Pipe plugs are designed to seal internal threads on tees, elbows, valves, or manifolds. Ideal for unused nozzles, test ports, and drain points.

2. Temporary or Reversible Sealing
If the pipeline may require future access—for flow expansion, chemical injection, cleaning, or sampling—a threaded pipe plug allows for convenient removal and reinstallation.

3. Fast Installation and Maintenance
Unlike welded caps, pipe plugs can be installed using a standard wrench—no special tools or welding operations required. This is especially useful during plant commissioning or shutdowns where speed is critical.

4. Limited Access or Tight Spaces
In tight installations where there’s no room for welding equipment or full-diameter fittings, hex head or square head pipe plugs offer compact sealing without additional clearance.

5. Cost Efficiency for Non-Permanent Applications
In systems where long-term sealing isn’t required, such as testing setups or process changeovers, pipe plugs provide a budget-friendly and reusable solution.

6. Threaded System Compatibility
Plugs are suitable for NPT, BSPT, and metric threaded systems. In industries using modular pipework or pre-threaded fittings, plugs are the go-to option for quick adaptation.

6. Conclusion

Both stainless steel pipe caps and stainless steel pipe plugs are essential components in piping systems. While they may look similar in purpose, their structure, connection style, and use cases are quite different.

• Pipe caps are best for permanent closures, especially in pressure-sensitive or sanitary pipelines.

• Pipe plugs are ideal for removable seals in threaded connections, commonly used in fluid testing and maintenance ports.

For any pipeline system, choosing the right pipe end fitting ensures long-term reliability, safety, and ease of operation.
