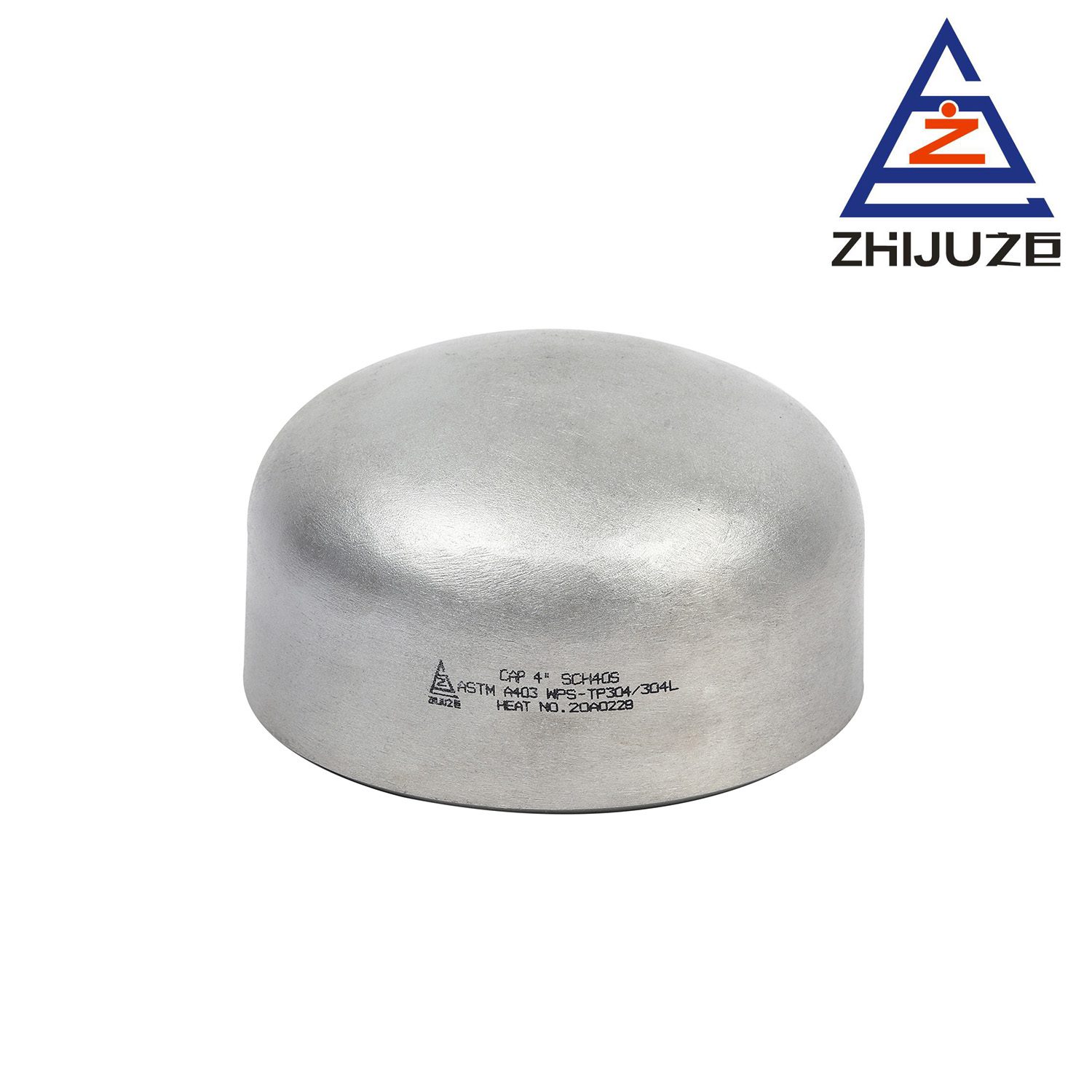

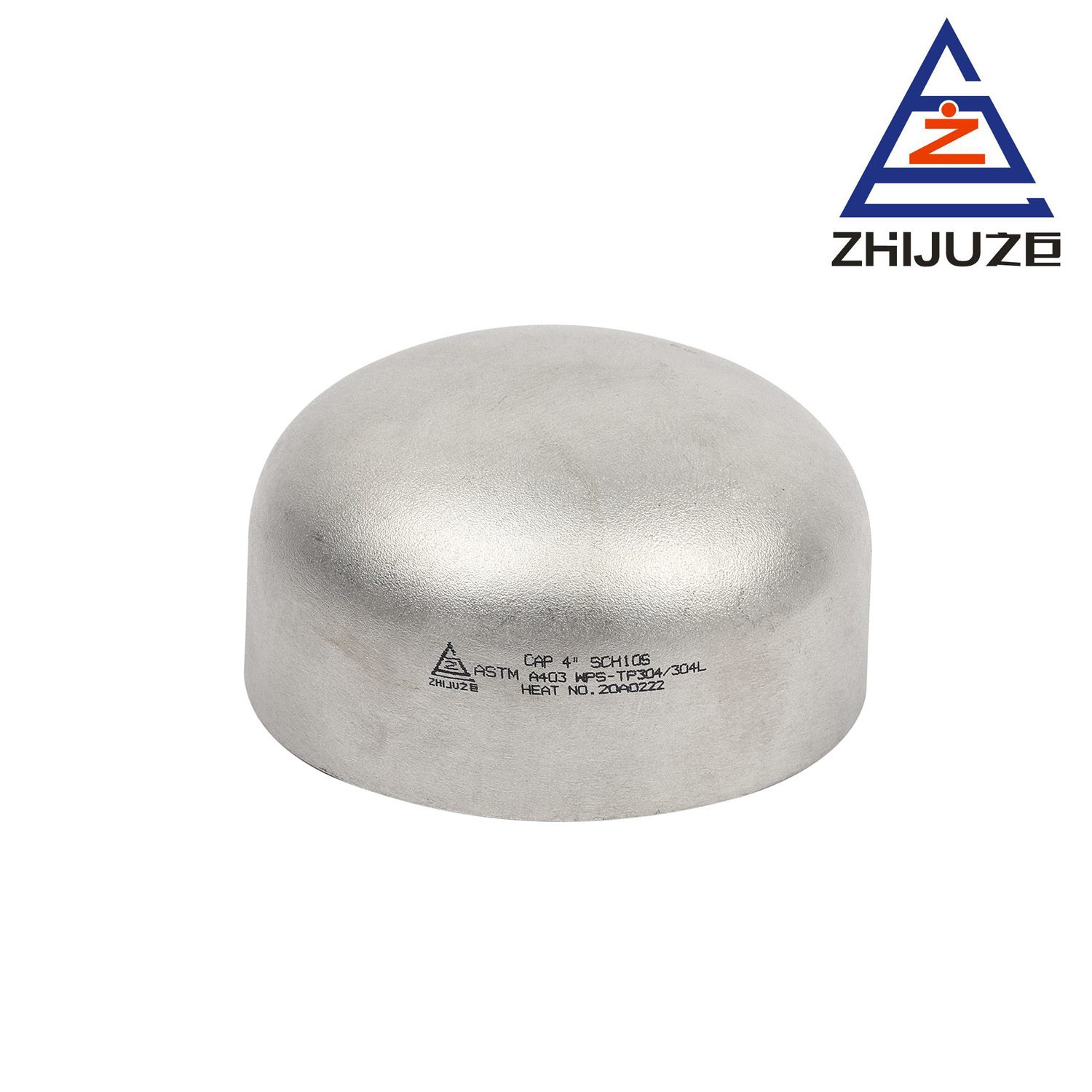

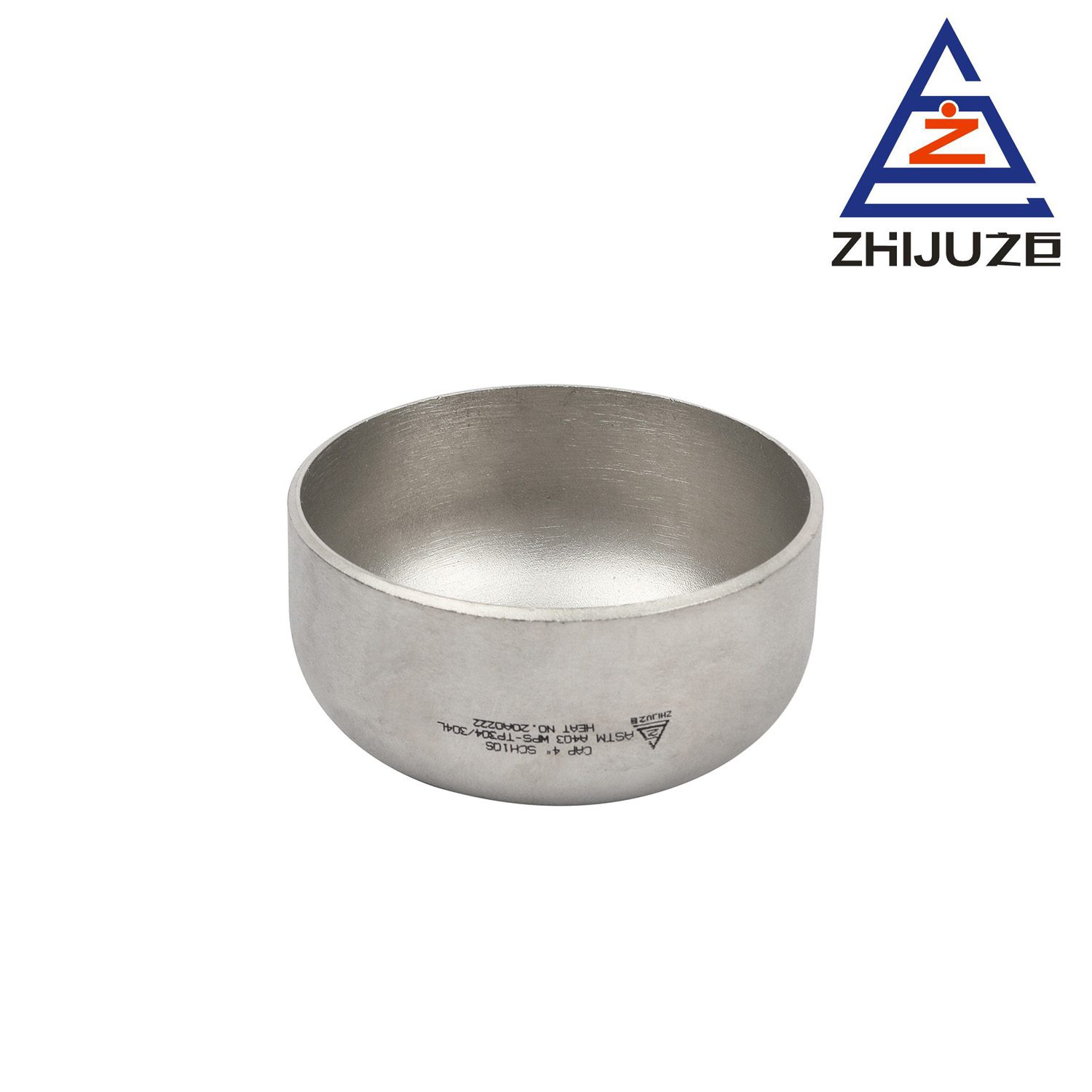

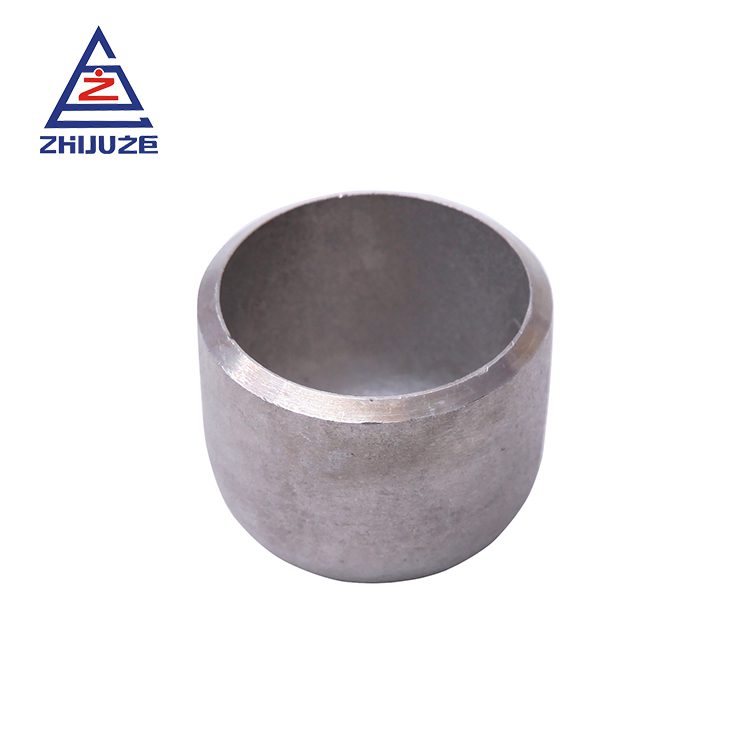

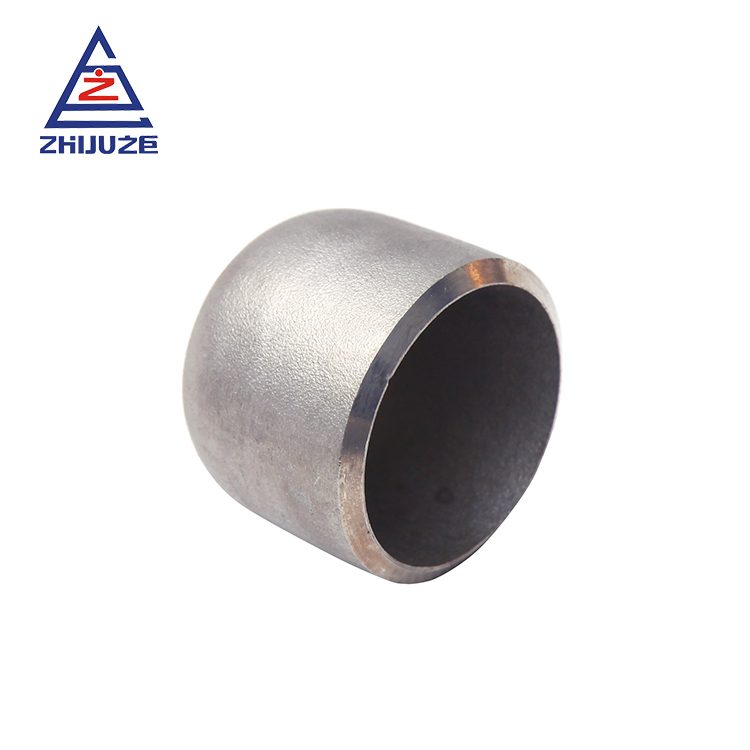

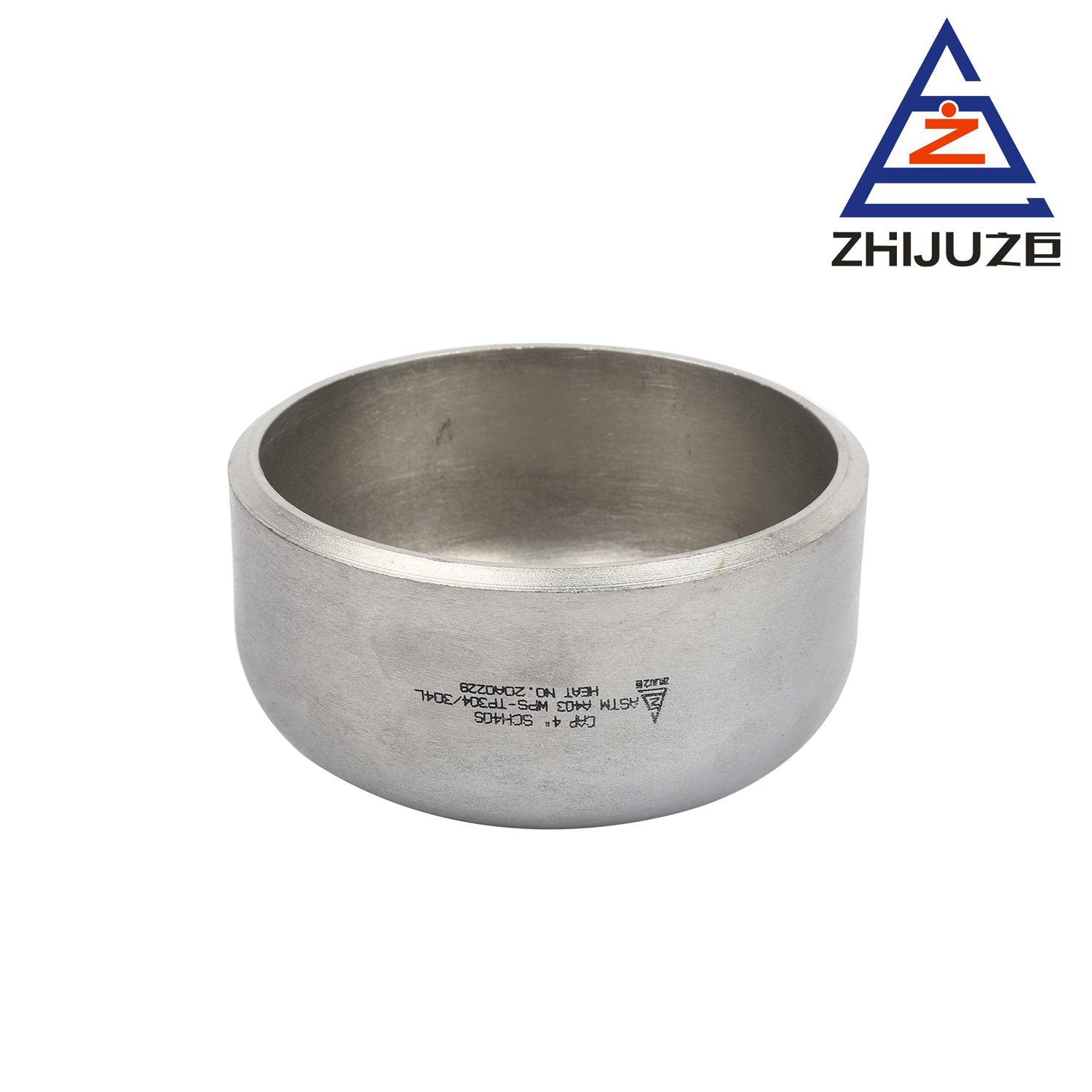

Butt Weld Caps

The product specification

1.NPS：DN15 – DN2000 (1/2″ – 80″)

2.Wall Thickness (THK)：Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS

3.Material：TP304L, TP316L, TP310, TP321, TP904L, DUPLEX 2205, 2507

Product Introduction

The Pipe Cap, also known as a pipe end cap or header, is a pipe fitting used to permanently or temporarily seal the end of a pipeline, providing isolation, containment, or system termination. According to shape and pressure-bearing capacity, it is mainly classified into elliptical, hemispherical, and flat (or conical) types. Among them, the elliptical cap is preferred for medium to high-pressure applications due to its optimal stress distribution; the hemispherical cap offers the highest pressure resistance; and the flat type facilitates vertical installation and structural support.

Product Parameters

NPS	DN15 – DN2000 (1/2″ – 80″)
Wall Thickness (THK)	Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS
Material	TP304L, TP316L, TP310, TP321, TP904L, DUPLEX 2205, 2507
