Steel pipe end caps have a long history, rooted in the Industrial Revolution, when high-pressure steam and oil pipelines required safe and secure terminations. In the past, carbon steel caps were used to seal pipe ends. These caps were forged and riveted in places like boiler rooms and shipyards. Their purpose was to prevent leaks and keep system pressure stable.
As engineering standards evolved, pipe cap designs became standardized. Now, they are governed by specific codes:
Today, steel pipe end caps are a critical component in industries ranging from oil & gas to food processing. According to Grand View Research’s 2024 report, the global pipe end cap market was valued at over USD 1.2 billion in 2024 and is projected to grow at a CAGR of 5–6% from 2024 to 2034 (Grand View Research, 2024).
A stainless steel pipe cap is a piping component designed to close the end of a pipe, protecting it from environmental exposure, contamination, and mechanical damage. Unlike plugs, which fit inside a pipe, caps cover the pipe end externally. They can be butt-welded, socket-welded, threaded, or flanged depending on the system design. Available in sizes from NPS 1/2″ to NPS 48″, stainless steel caps are produced in multiple grades such as 304 pipe cap and 316L pipe cap to meet varying corrosion resistance and mechanical strength requirements.
These caps are made to meet international standards. These include codes like ASME B16.9, MSS SP-43, DIN, or JIS. This ensures they are accurate, safe for high pressure, and last a long time in tough conditions.
The primary functions of stainless steel pipe caps include:
Permanent or temporary closure of pipe ends in fluid transport systems
Pressure containment in high-pressure pipelines
Protection of pipeline interiors from dust, moisture, and corrosion during storage or transport
Facilitating hydrostatic testing by sealing pipe ends
Safety assurance in high-risk industrial environments, preventing accidental leaks or spillage
Stainless steel caps provide a robust, leak-proof seal when installed correctly. Butt-weld stainless steel pipe caps are especially effective in high-pressure and high-temperature applications, as the welded joint becomes as strong as the pipe itself.
They block dust, dirt, insects, and moisture from entering unused pipelines. This is crucial in food-grade and pharmaceutical systems, where contamination can compromise safety and quality.
Threaded and socket weld types are quick to install, making them ideal for maintenance work or temporary closures. Butt-weld caps require skilled welding but provide a permanent, maintenance-free solution.
From stainless steel tube end caps in laboratory equipment to stainless steel end caps for pipes in petrochemical refineries, these components adapt to a wide variety of industries.
By eliminating the need for complex valve assemblies when a pipeline section is no longer in use, caps reduce system cost while maintaining safety.
Caps reinforce the pipe end, increasing resistance to mechanical stress, impact, and vibration during operation or transportation.

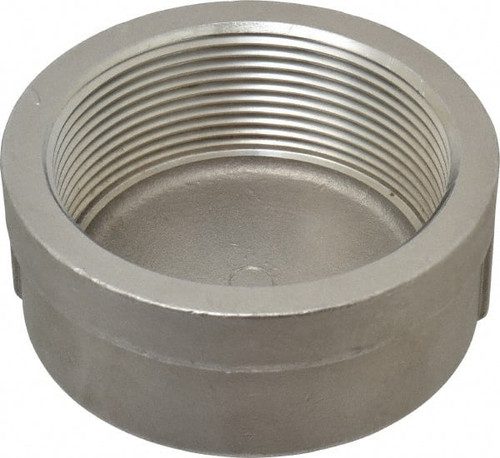

Manufactured per ASME B16.11, these caps have internal threads (NPT or BSP) that screw onto a male-threaded pipe. Ideal for low- to medium-pressure systems and easy disassembly.
As per ASME B16.9, these are welded directly to the pipe end. Suitable for high-pressure and high-temperature systems, offering the strongest and most durable seal.

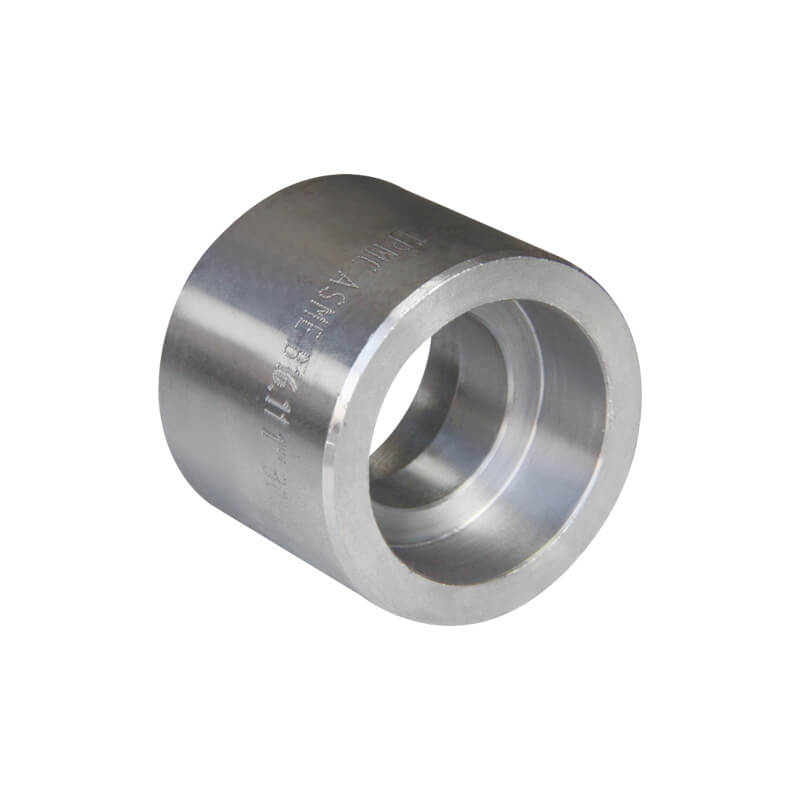

Also per ASME B16.11, these caps fit over the pipe end with a socket connection, then are fillet-welded. Common in small-bore, high-pressure applications such as oil refineries.
Based on ASME B16.5/B16.47, these caps are bolted onto a pipe flange using a blind flange design. Perfect for systems requiring frequent removal for cleaning or inspection.
The table below lists the key dimensions for stainless steel butt-weld pipe caps in accordance with ASME B16.9.
| NPS (inch) | DN (mm) | Outside Diameter D (mm) | Length E (mm) | Limiting Wall Thickness for E (mm) | Length E1 (mm) |
| 1/2 | 15 | 21.3 | 25 | 4.57 | 25 |
| 3/4 | 20 | 26.7 | 25 | 3.81 | 25 |
| 1 | 25 | 33.4 | 38 | 4.57 | 38 |
| 1 1/4 | 32 | 42.2 | 38 | 4.83 | 38 |
| 1 1/2 | 40 | 48.3 | 38 | 5.08 | 38 |
| 2 | 50 | 60.3 | 38 | 5.59 | 44 |
| 2 1/2 | 65 | 73 | 38 | 7 | 51 |
| 3 | 80 | 88.9 | 51 | 7.62 | 64 |
| 3 1/2 | 90 | 101.6 | 64 | 8.13 | 76 |
| 4 | 100 | 114.3 | 64 | 8.64 | 76 |
| 5 | 125 | 141.3 | 76 | 9.65 | 89 |
| 6 | 150 | 168.3 | 89 | 10.97 | 102 |
| 8 | 200 | 219.1 | 102 | 12.7 | 127 |
| 10 | 250 | 273 | 127 | 12.7 | 152 |
| 12 | 300 | 323.8 | 152 | 12.7 | 178 |
| 14 | 350 | 355.6 | 165 | 12.7 | 191 |
| 16 | 400 | 406.4 | 178 | 12.7 | 203 |
| 18 | 450 | 457 | 203 | 12.7 | 229 |
| 20 | 500 | 508 | 229 | 12.7 | 254 |
| 22 | 550 | 559 | 254 | 12.7 | 259 |
| 24 | 600 | 610 | 267 | 12.7 | 267 |
Notes:
D is the outside diameter at the bevel.
E is the length for standard wall thickness; E1 applies when wall thickness exceeds the limit for E.
Dimensions are in millimeters (mm) per ASME B16.9; custom sizes are available for special projects.
The most common materials are:
304 Stainless Steel Pipe Cap: Excellent corrosion resistance, suitable for food processing, water systems, and general industrial use.
316L Stainless Steel Pipe Cap: Higher molybdenum content, superior resistance to chlorides and acids, ideal for marine and chemical applications.
Duplex Stainless Steel: High strength and exceptional corrosion resistance in aggressive environments.
Special Alloys: For extreme conditions such as offshore oil rigs or high-temperature chemical plants.
Oil & Gas: Offshore platforms, pipelines, and refinery systems.
Chemical Processing: Acid and alkali pipelines.
Food & Beverage: Hygienic stainless steel tube end caps for sanitary systems.
Water Treatment: Sealing pipelines in potable water and wastewater facilities.
Marine Industry: Corrosion-resistant closures in ship piping systems.
Construction & Infrastructure: Pipeline terminations in large-scale utility projects.
Preparation: Clean pipe ends and check cap dimensions.
Fitment:
Threaded: Apply thread sealant and screw into place.
Socket Weld: Insert pipe, maintain gap, weld around the socket.
Butt Weld: Align cap with pipe end, perform root and filler welds.
Flanged: Align bolt holes, use gasket, tighten bolts in sequence.
Inspection: Verify alignment, sealing integrity, and compliance with project specifications.
Testing: Conduct pressure testing if required by code.
High-quality stainless steel pipe caps comply with:
ASME B16.9 – Butt-weld fittings
ASME B16.11 – Forged threaded & socket weld fittings
ASME B16.5/B16.47 – Flanges
ASTM A403/A815 – Stainless steel fitting materials
ISO, DIN, JIS – International standards
PED, NACE MR0175 – Industry-specific requirements
While both serve to close pipe ends, they differ in structure and application:
| Feature | Butt Weld Cap | Pipe Plug |
| Position | External closure welded over pipe end | Internal closure screwed into pipe |
| Connection | Butt weld joint per ASME B16.9 | Male-threaded per ASME B16.11 |
| Best For | Permanent, high-pressure termination | Temporary or service port closure |
| Material Grades | 304, 316L, duplex | 304, 316L, brass, carbon steel |
| Applications | Oil & gas, chemical, water systems | Hydraulic, pneumatic, test points |
For a detailed breakdown, see our full article: Stainless Steel Pipe Caps vs Pipe Plugs: Key Differences.
Stainless steel pipe caps are an essential component in any industrial piping system, providing reliable sealing, contamination protection, and structural reinforcement. From 304 pipe cap for general service to 316L pipe cap for extreme environments, there is a solution for every application. By understanding their origin, market trends, types, materials, and standards, engineers and procurement managers can make informed choices that ensure safety, compliance, and cost efficiency.
When you choose a stainless steel end cap, keep three things in mind. First, always check industry standards. Second, verify the supplier. Finally, think about both current and future service conditions to get the best long-term results.
