In piping design, engineers often face the question: Blind Flange vs Cap – which is the right choice? Both components are used to seal the ends of pipes, but they differ in function, structure, and application. A blind flange is bolted and removable, whereas an end cap (also known as a pipe cap) is welded and permanent. Understanding these differences is critical for safety, cost optimization, and system performance. This article explains the 10 key differences between blind flanges and end caps, covering design, standards, performance, and economics, to help engineers and procurement managers make informed decisions.
A blind flange is a solid disk-shaped component used to block the end of a pipe, valve, or pressure vessel. It has bolt holes around its circumference, allowing it to be connected like a regular flange. The main advantage of a blind flange is its removability—it can be unbolted when inspection, cleaning, or system extension is required.
Material options: Stainless steel blind flanges, carbon steel, alloy steel.
Pressure classes: Ranging from Class 150 up to Class 2500, depending on system requirements.
Standards: Commonly manufactured under ASME B16.5, ASME B16.47, and API 6A specifications.
Blind flanges are widely used in high-pressure and high-temperature environments where frequent access is necessary.

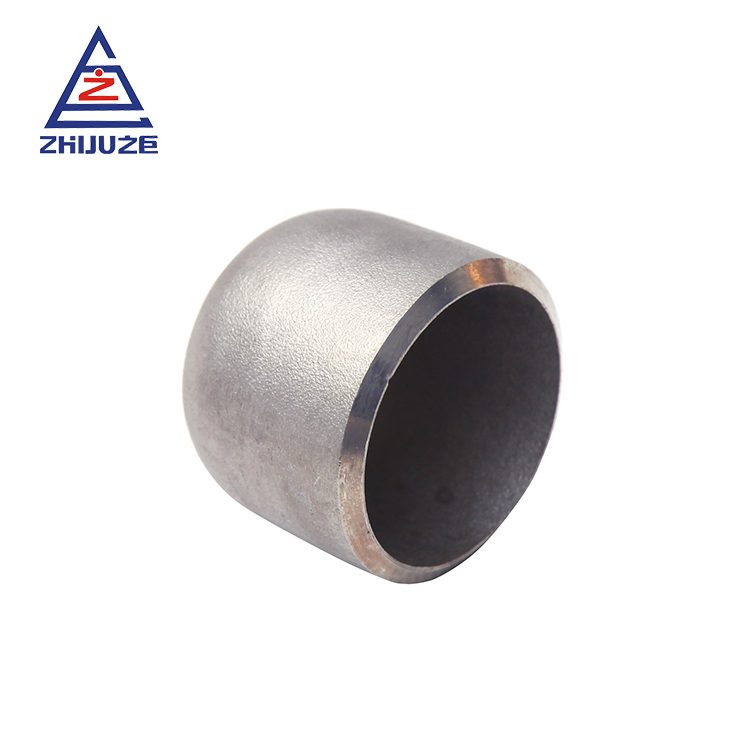

An end cap (or pipe cap) is a pipe fitting welded onto the end of a pipeline to provide a permanent closure. It is typically hemispherical, elliptical, or flat in shape. Unlike blind flanges, pipe caps are not removable and are used where long-term sealing is required.
Material options: Stainless steel end cap, carbon steel, alloy steel.
Manufacturing methods: Cold-formed for small sizes; hot-pressed for larger diameters.
Standards: Designed according to ASME B16.9, DIN, and other international piping codes.
End caps are cost-effective, easy to install, and ideal for low- and medium-pressure systems where inspection is not frequently needed.
When engineers compare Blind Flange vs Cap, they usually focus on functionality, design, operating conditions, and long-term economics. Both components are used to close the end of a piping system, but their engineering logic is very different. Below is a structured comparison based on technical, economic, and operational perspectives.
| Aspect | Blind Flange | Pipe Cap |
|---|---|---|
| Fundamental Concept & Connection | Bolted connection, removable, requires gasket sealing. | Welded connection, permanent, no need for gaskets. |
| Design & Structure | Flat circular plate with bolt holes and a sealing face. Variants: RF, FF, RTJ. | Spherical, elliptical, or dished shape. Wall thickness calculated per ASME VIII or EN 10253. |
| Application Scenarios | Ideal for systems requiring inspection, cleaning, or future expansion (chemical plants, refineries, offshore). | Used for permanent closures in pipelines (water supply, fire protection, buried systems). |
| Pressure Performance | Higher pressure ratings, bolted design with a gasket ensure tight seal. | Pressure limited by pipe wall thickness and weld strength. |
| Temperature Range | Stainless steel blind flanges work in extreme cryogenic and high-temperature services. | Stainless steel pipe caps suitable for moderate service; less flexible for high-temp maintenance. |
| Installation & Maintenance | Easier installation/removal; requires correct gasket and torque control. | Requires welding and inspection; cannot be easily removed once installed. |
| OPEX (Operational Cost) | Higher OPEX due to gasket replacement, bolt lubrication, periodic inspection. | Lower OPEX, almost maintenance-free after welding. |
| Cost & Economics (CAPEX) | Higher initial cost, especially for large stainless steel blind flanges. | Lower cost, suitable for bulk closures in large projects. |
| Decision Criteria | Choose when frequent inspection, cleaning, or high-pressure API service is required. | Choose when permanent closure or buried piping with no modifications is needed. |
| Standards & Compliance | ASME B16.5, B16.47, API 6A, ISO 7005. | ASME B16.9, EN 10253, DIN 2617. |
Blind Flange: A blind flange is bolted onto the pipe end or equipment nozzle. It is removable, making it suitable for systems that may require inspection, hydrostatic testing, or future expansion. A gasket is always needed to ensure tight sealing.
Pipe Cap (End Cap): A pipe cap is a welded fitting, permanently attached to the pipe end. It does not require gaskets, bolts, or periodic tightening. Once welded, it becomes part of the pipeline.
Key takeaway: Blind flanges provide removability and flexibility, while pipe end caps provide a permanent closure solution.
Blind Flange: A flat, circular disc with drilled bolt holes and sealing surfaces. Designs include raised face (RF), flat face (FF), and ring-type joint (RTJ). Stainless steel blind flanges are widely used in corrosive and high-pressure applications due to their durability.
Pipe Cap: A forged or fabricated fitting with a hemispherical, elliptical, or dished shape. Its wall thickness is calculated according to pressure vessel codes such as ASME Section VIII. Stainless steel end caps are often chosen when corrosion resistance is essential in buried or pressurized pipelines.
Observation: Blind flanges rely on mechanical sealing + gasket, while caps rely on metallurgical welding strength.
Blind Flange: Common in oil & gas processing, power stations, petrochemical plants, and offshore platforms, where frequent disassembly or periodic testing is required. Example: isolating heat exchanger nozzles for maintenance.
Pipe Cap: Preferred in water distribution, HVAC systems, fire protection pipelines, and underground lines, where the closure is permanent and accessibility is not required.
Tip: If the system will be inspected or modified in the future, a blind flange is the better choice. If the system is sealed once and forgotten, a cap is the economic option.
Blind Flange: Can handle very high pressure ratings, from Class 150 up to Class 2500, depending on the design and material. When combined with an RTJ gasket, it provides excellent sealing under cyclic and shock loading conditions.
Pipe Cap: Pressure capacity depends on wall thickness and weld quality. While suitable for standard pressure pipelines, it is not typically designed for extreme pressure classes beyond ASME B16.9 specifications.
Stainless Steel Blind Flange: Performs well under extreme temperatures, from cryogenic service (LNG plants) to high-temperature steam service.
Stainless Steel Cap: Works well for moderate temperature ranges but is less flexible for systems requiring regular monitoring or gasket replacement.
Blind Flange: Requires bolting, torque control, and gasket installation. However, it is easier to remove for inspection, cleaning, or hydrostatic testing.
Pipe Cap: Requires welding and post-weld inspection, such as radiography or hydrostatic testing. Once installed, it is virtually maintenance-free but cannot be removed without cutting.
Blind Flange: Higher operational costs due to gasket replacement, bolt lubrication, and routine inspection. Suitable for facilities with maintenance teams in place.
Pipe Cap: Negligible OPEX after installation, making it cost-efficient for systems that do not require disassembly.
Blind Flange: Higher CAPEX, especially for large stainless steel blind flanges. However, the cost can be justified by reduced downtime during inspection and better lifecycle flexibility.
Pipe Cap: Lower purchase and installation cost, particularly when large quantities of closures are required in water supply or fire protection projects.
If frequent inspection or cleaning is required → Choose Blind Flange.
If permanent closure with low cost is required → Choose Pipe Cap.
If high pressure, API-certified service, or cyclic operation exists → Choose RTJ Blind Flange.
If buried pipeline or long-term closure → Choose Welded Cap.
Blind Flange: Found in chemical plants, refineries, LNG facilities, and offshore rigs where flexibility and inspection are critical.
Pipe End Cap: Common in municipal water networks, HVAC piping, and structural pipelines where permanent sealing is preferred.
Blind Flange: Governed by ASME B16.5, ASME B16.47, API 6A, ISO 7005. Pressure classes cover a wide range, ensuring global compliance.
Pipe Cap: Governed by ASME B16.9, EN 10253, DIN 2617. Standards primarily cover dimensions, tolerances, and wall thickness calculation.
Selecting between a stainless steel blind flange and a stainless steel cap is not only a matter of price but also a technical decision that impacts the long-term safety and efficiency of your piping system. To make the right choice, consider the following factors:
If the system needs periodic inspection, cleaning, or future expansion, a blind flange is the preferred solution.
Because a blind flange is bolted and removable, it provides flexibility for shutdowns, testing, and future modifications.
In contrast, a pipe end cap is welded and permanent, best for pipelines where no future opening is expected, such as underground fire protection lines or water supply systems.
Blind flanges, particularly stainless steel blind flanges, are engineered to withstand high-pressure and high-temperature environments. Their bolted design with gasket sealing ensures tightness under extreme conditions, including cryogenic service or steam pipelines.
Stainless steel caps are reliable under moderate pressure and temperature but are limited by wall thickness and welding strength. They are not as adaptable to cyclic loads or frequent thermal expansion.
For projects with limited budgets or where hundreds of closures are required, a pipe end cap offers significant savings. Its lower initial cost and minimal operational expenditure (OPEX) make it suitable for cost-sensitive projects.
For critical applications where safety, compliance, and reliability matter more than upfront cost, a blind flange provides long-term value despite higher CAPEX.
Procurement engineers should always align product selection with ASME and international standards.
Blind flanges are governed by ASME B16.5, ASME B16.47, and API 6A, ensuring pressure integrity in oil & gas and petrochemical plants.
Pipe caps are covered under ASME B16.9, EN 10253, and DIN 2617, widely used in water, HVAC, and structural piping systems.
Choose a blind flange if your project involves inspection cycles, high-pressure service, or requires compliance with API and ASME sealing standards.
Choose a pipe cap if you need a permanent, low-cost, maintenance-free closure for pipelines that will not require reopening.
In short, the choice between a blind flange vs cap depends on balancing technical performance, cost considerations, and compliance requirements. A well-informed selection will ensure system safety, durability, and lifecycle efficiency.
The decision of Blind Flange vs Cap is not just about sealing a pipe—it is about ensuring long-term performance, safety, and cost efficiency.
Blind flanges provide flexibility, reusability, and reliable sealing for high-pressure or high-temperature applications.
Pipe end caps deliver simplicity and lower cost, making them ideal for permanent closures where maintenance is not expected.
Both options, when manufactured according to ASME and international standards, play a crucial role in modern piping systems.
If you are looking for trusted partners to supply reliable fittings, explore our full product range. As a leading stainless steel pipe fittings manufacturer in China, we provide stainless steel blind flanges, pipe end caps, and other precision-engineered components that meet global standards.
Start your project with confidence—contact us today and get expert guidance tailored to your piping requirements.
Q: When should you use a piping cap or a blind flange?
A: Use a piping cap when you need a permanent, welded closure with no requirement for future access. Use a blind flange when periodic inspection, cleaning, or expansion is required.
Q: Is a blind flange stronger than a pipe cap?
A: In terms of pressure resistance, blind flanges can withstand higher classes (up to Class 2500) due to bolted and gasketed designs. Pipe caps rely on pipe wall thickness and weld strength, which are usually sufficient for moderate-pressure service.
