Stainless Steel History From Early Discoveries To Modern Alloys

Introduction

Stainless steel, first recognised as a corrosion-resistant alloy in 1913 Sheffield, resists rust thanks to a self-healing chromium-oxide passive film that forms when an iron alloy contains at least ~10.5% chromium. That single insight turned a laboratory curiosity into a family of engineering materials that now shape skylines, medical breakthroughs, transportation, and daily life—an evolution worth exploring for anyone researching the history of stainless steel, how it was invented, and why it’s so durable.

1. Before Stainless: The Quest for Rust Resistance

Through the 1800s, metallurgists kept bumping into the same wall: iron is strong, but it rusts. Early iron-chromium experiments (Faraday, Stoddart) showed promise; Pierre Berthier suggested chromium could protect steel from acids (1821). Still, the alloys were brittle or impure. A practical breakthrough came in 1895 when Hans Goldschmidt’s aluminothermic reduction produced low-carbon ferrochrome, making cleaner Fe-Cr melts possible—the precondition for everything that followed. This context matters in any accurate stainless steel history: invention isn’t just a name and a date; it’s also the manufacturing trick that makes the idea viable. (Historical background consolidated from authoritative industry histories and association archives.)

2. The Birth of Stainless Steel (1913—Sheffield, and in parallel)

The “birthday” most people remember is August 1913, when Harry Brearley produced a ~12.8% Cr, low-carbon steel for erosion-resistant gun barrels and noticed it didn’t stain. But the discovery was global: Eduard Maurer & Benno Strauss in Germany developed Fe-Cr-Ni austenitic alloys; Léon Guillet (France) had published Fe-Cr-Ni studies by 1904-1911; Elwood Haynes (USA) patented similar alloys; Avesta (Sweden) scaled production soon after. The fair reading of the history of stainless steel is that 1913 marks recognition and momentum—not solitary invention.

3. Why Stainless Steel Resists Rust (The Science, clearly explained)

If you remember just one mechanism from this article, make it this: chromium enables passivation.

• Passive film. Above ~10.5% Cr, stainless steels spontaneously grow an ultrathin, chromium-rich oxide—typically ~1–3 nm thick—that self-heals in oxygenated environments. This film dramatically slows the electrochemical reactions that cause rust.

• Alloying elements.

  • Ni (nickel) stabilises the austenitic (γ) phase—boosting toughness and formability.

  • Mo (molybdenum) suppresses pitting and crevice corrosion, especially in chlorides.

  • N (nitrogen) adds strength and further improves pitting resistance; it’s also used deliberately in modern refining. Authoritative handbooks (e.g., Nickel Institute) emphasise these roles across common grades like 304 (18-8) and 316 (18-10-2 with Mo).

• Quantifying chloride resistance. Engineers often compare grades using PREN (Pitting Resistance Equivalent Number):
  PREN = %Cr + 3.3×%Mo + 16×%N (or variants with W for super-duplex). Higher is better in chloride-rich service.

• Heat-affected pitfalls. Between ~500–800 °C, sensitization can tie up chromium as Cr-carbides at grain boundaries, locally depleting Cr and inviting intergranular corrosion—the reason “L-grades” (e.g., 304L) and stabilised grades (Ti/Nb) exist. The British Stainless Steel Association has an accessible technical note on this exact issue.

That’s the unique magic of stainless steel: a nanometre-scale, self-repairing film, supported by smart alloy design and heat-treatment discipline.

4. The Evolution of Stainless Steel Families

To make this stainless steel history practical for buyers, designers, and students, here’s a concise, multi-dimension map—going beyond the usual “four types” list you see on competitor blogs.

Family	Typical Grades	Composition Hints	Magnetism	Weldability	Chloride Resistance (rule-of-thumb)	Typical Applications	Common Standards (AISI ↔ EN ↔ UNS)
Austenitic	304, 304L, 316/316L	17–20% Cr, 8–12% Ni; 316 adds 2–2.5% Mo	Non-magnetic (can become slightly magnetic after cold work)	Excellent; L-grades mitigate sensitization	316 > 304; super-austenitics (e.g., 254SMO) far higher	Food equipment, pharma, architecture, cryogenics	304 ↔ EN 1.4301 ↔ UNS S30400; 316 ↔ EN 1.4401/1.4404 ↔ UNS S31600/S31603 (ISO 15510 provides wide cross-refs)
Ferritic	409, 430, 444	10.5–18% Cr, low/no Ni	Magnetic	Good, but watch embrittlement in higher-Cr ferritics	Moderate; 444 (with Mo) better than 430	Auto exhausts, appliances, cladding	430 ↔ EN 1.4016 ↔ UNS S43000
Martensitic	410, 420, 440C	11.5–18% Cr, higher C for hardenability	Magnetic	Preheat/post-heat may be needed	Lower for chloride pitting; valued for strength/hardness	Cutlery, turbines, wear parts	410 ↔ EN 1.4006 ↔ UNS S41000
Duplex	2205, 2507	~22–25% Cr, 3–7% Ni, Mo + N	Slightly magnetic	Good; control heat input to keep ~50/50 phases	Higher than 316; 2507 is “super duplex”	Offshore, desalination, chemical plants	2205 ↔ EN 1.4462 ↔ UNS S32205/S31803
Precipitation-Hardening (PH)	17-4PH	~17% Cr, 4% Cu, Nb/Cb	Magnetic (martensitic-PH)	Good; post-weld aging controls properties	Good general resistance; chosen for high strength	Aerospace, energy, shafts	17-4PH ↔ EN 1.4542 ↔ UNS S17400

5. Industrialisation: Melting, Refining and Mass Production

The leap from lab alloy to global material is a huge part of the history of stainless steel.

• AOD (Argon-Oxygen Decarburization). Invented by the Linde Division of Union Carbide (mid-20th century; widely attributed to 1954 conception and 1955 onward development), AOD made it economical to remove carbon without sacrificing chromium, while enabling controlled nitrogen additions for stronger, more corrosion-resistant duplex grades. Today, well over half—often cited as ~75%—of the world’s stainless is refined via AOD.

• VOD (Vacuum Oxygen Decarburization). Developed in Europe in the 1960s–1970s (e.g., Germany’s VODC; SS-VOD by Kawasaki Steel in 1977), VOD/VODC allow ultra-low carbon and nitrogen levels and exceptionally clean melts for demanding applications.

• So what? AOD/VOD are the quiet heroes of stainless steel history—they transformed stainless from a premium novelty into a volume, consistent, and affordable material platform used in everything from food tanks to subsea risers.

6. Milestones in Application (a few that shaped public trust)

• Architecture—Chrysler Building (1930). The crown and roof cladding used Enduro KA-2 (AISI 302) stainless, patented by Krupp Nirosta and produced under license in the U.S. A visible, long-term proof that stainless keeps its shine.

• Transportation—Pioneer Zephyr (1934). Budd’s shotwelding technique enabled rivetless stainless streamliners; the Zephyr became America’s first diesel-electric, streamlined, stainless-steel passenger train.

• Monuments—Gateway Arch (1965). Clad in 6.3 mm Type 304 stainless steel (No.3 finish), the Arch turned corrosion resistance into a national landmark—literally.

These real-world projects did more than market stainless; they validated, in public view, the promises embedded in the history of stainless steel—durability, hygiene, low maintenance, and modern aesthetics.

7. Today’s Stainless Steel Industry (numbers, sectors, sustainability, and what’s next)

• Production scale. In 2024, global stainless steel melt-shop production reached ~62.6 million metric tons, +7% year-on-year, per the world stainless association. China remains the largest producer.

• Where it’s used. The industry’s official Stainless Steel in Figures compendium (worldstainless) breaks down use by sector (household goods, building & construction, mechanical/chemical, transport, etc.), a reminder that stainless is a general-purpose platform for both consumer and industrial value. (The detailed tables are in the paid report; the public landing explains scope and cadence.)

• Circularity and recycling. Stainless steel is 100% recyclable and typically produced with a high scrap fraction, which is why it’s repeatedly profiled in sustainability case studies from industry associations and the Nickel Institute. That inherent circularity—combined with long service lives—reduces life-cycle environmental impacts compared with frequent replacements.

• Near-term demand dynamics. Worldstainless’ updates and media releases have pointed to growth in 2024 after the 2023 base, with regional differences (China up, Europe modest, U.S. variable). For planning, check the worldstainless consumption forecast page for quarterly updates by product form.

• What’s next (the trajectory that matters):

  • Super duplex and super austenitic stainless steels (e.g., 2507, 254SMO) for seawater, desalination, and sour service—high PREN numbers and weldability improvements are core to these.

  • Low-Ni / high-N designs to manage price volatility and improve strength—enabled by AOD nitrogen control.

  • Additive manufacturing (AM). Powder-bed and DED processes are extending stainless into lattice structures, conformal-cooled tooling, and rapid MRO—an ongoing frontier for the next chapter in stainless steel development. (Industry trend consolidation.)

Bottom line: if you’re researching the stainless steel history and where it’s going, the data say the platform is still expanding—driven by chloride-resistant duplexes, ultra-clean refining, circularity, and design freedom in AM.

Conclusion

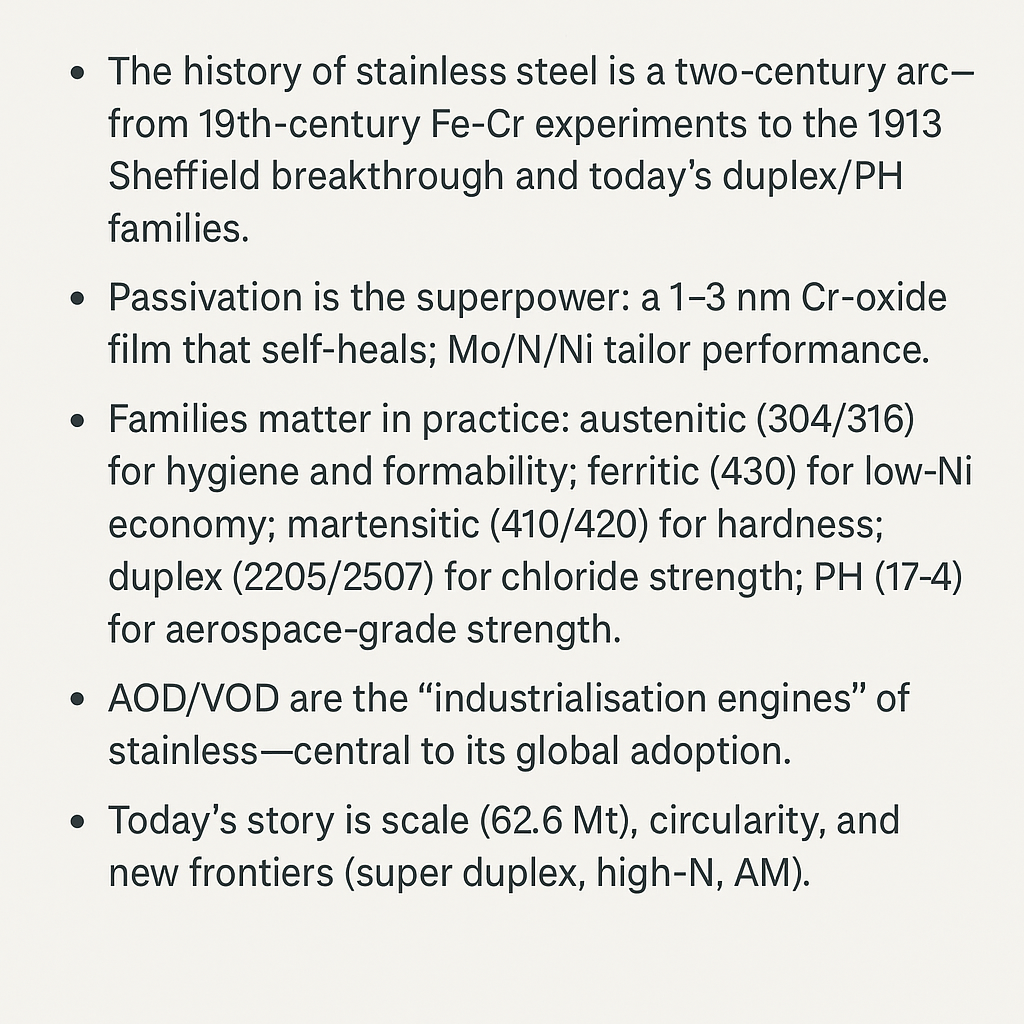

The history of stainless steel is more than a timeline of inventions; it is a story of persistence, innovation, and global collaboration. From the early 19th-century experiments with chromium to Brearley’s 1913 breakthrough in Sheffield, from the adoption of refining technologies like AOD and VOD to today’s high-performance duplex and super-austenitic grades, stainless steel has continually adapted to the needs of industry and society. Its unique combination of durability, recyclability, and versatility ensures that stainless steel is not only a material of the past and present, but also a cornerstone of a sustainable future. As new challenges emerge—from renewable energy to additive manufacturing—the legacy of stainless steel proves that the best materials are those that evolve with us.
