Flanges play a crucial role in process piping and pressure vessel connections. Selecting the right flange material directly impacts performance, corrosion resistance, and long-term durability. For engineers, project managers, and procurement professionals, the decision often comes down to two leading options: Carbon Steel Flange and Stainless Steel Flange.
This article will analyze the answers from fourteen perspectives: “What’s the difference between stainless steel flanges and carbon steel flanges?” We will break down the critical differences, from metal grain structure and alloy content to corrosion resistance, heat treatment cycles, pressure-temperature ratings, and ANSI flange class availability.
Let’s dive in.
A Stainless Steel Flange is a forged or cast flange made primarily from stainless steel alloys such as ASTM A182 F304 or F316. These flanges are known for their high corrosion resistance, austenitic grain structure, and ability to perform in harsh environments including marine, pharmaceutical, and chemical plants.
Stainless steel flanges derive their corrosion resistance from their chromium content (minimum 10.5%). Molybdenum in grade 316 enhances resistance to chloride-rich media.

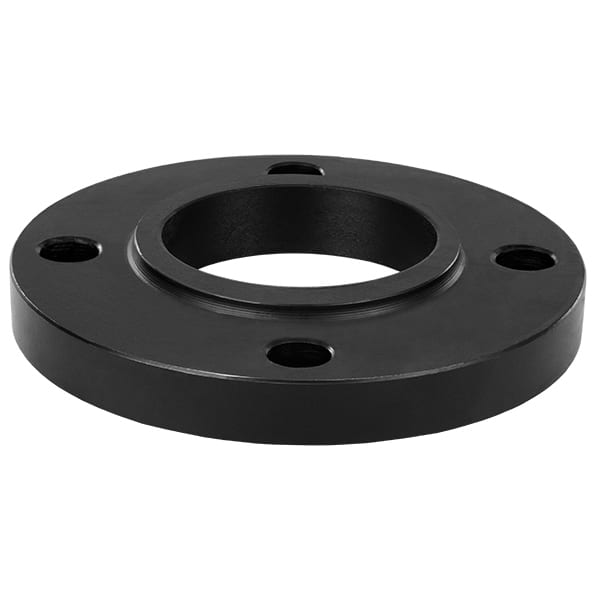

A Carbon Steel Flange is made from carbon-rich alloys such as ASTM A105, A350 LF2, or A694. These materials offer high strength, cost-effectiveness, and excellent weldability.
Carbon steel flanges are widely used in power plants, refineries, and oil & gas pipelines where corrosion is controlled or managed through coatings and linings.
source: Gloxco
Understanding the core differences between Stainless Steel Flanges and Carbon Steel Flanges is critical when specifying components for a process piping or pressure vessel connection. These differences go beyond just cost or appearance. They involve metallurgical behavior, corrosion mechanisms, thermal performance, fabrication challenges, industrial standards, and even the environmental impact of your selection.
Below is a comprehensive breakdown of the 14 key difference dimensions based on standards like ASME B16.5, ASTM A105, A182 F304/F316, and ISO 7005-1.
Stainless Steel Flanges are composed primarily of iron, chromium (minimum 10.5%), and nickel, forming an austenitic microstructure. This alloy combination gives it superior resistance to corrosion and oxidation. Common stainless grades like ASTM A182 F304 and F316 also include molybdenum, which improves pitting resistance in chloride-rich environments.
Carbon Steel Flanges, such as those made from ASTM A105 or Q235, are iron-based with a higher carbon content typically ranging from 0.25% to 0.60%. Their ferritic-pearlitic structure gives excellent mechanical strength and rigidity but lower corrosion resistance. Some carbon flanges undergo normalizing heat treatment (e.g., A105N) to refine grain structure and improve ductility for process safety.
Stainless steel corrosion resistance is a standout property. The chromium reacts with oxygen to form a passive protective layer, preventing oxidation and chemical attack. Grade F316, in particular, is highly resistant to acids and chlorides, ideal for marine applications and chemical processing.
Carbon steel flanges lack inherent corrosion resistance. They are susceptible to rust, especially in high-moisture or acidic environments. Protective coatings like epoxy, galvanizing, or rubber lining are often required. In process piping, this increases both maintenance cost and failure risk if coatings degrade over time.
Both flange types comply with ASME B16.5 Clause 6 pressure-temperature ratings, but the underlying mechanical performance differs:
The alloy content in stainless steel also ensures consistent performance under both tensile and shear stress, making it suitable for dynamic load environments.
Stainless steel maintains structural integrity at elevated temperatures and is widely used in high temperature flange applications like steam and exhaust systems. Grades like F316 can operate continuously above 500°C without significant degradation.
Carbon steel flanges, while strong at room temperature, can suffer from grain coarsening or strength loss at high temperatures unless specially heat-treated. For example, A105N can endure up to 425°C, but usage beyond this requires careful engineering review.
Flange welding techniques vary depending on material:
Carbon steel flanges are commonly used in oil and gas, power plants, municipal waterworks, and process piping where cost and strength are prioritized over corrosion performance.
Stainless steel flanges are preferred in pharmaceutical, food & beverage, marine, and chemical plants where hygiene, resistance to aggressive media, and flange durability and lifespan are critical.
Stainless steel flanges have a longer service life due to passive protection, requiring less frequent maintenance. This reduces downtime in critical systems.
Carbon steel flanges demand routine inspection for rust, leaks, or coating degradation. Over a 20-year cycle, total maintenance cost can exceed stainless options, especially in outdoor or humid environments.
Both flange types conform to ASME B16.5, API 605, or ISO 7005-1 dimensions. This ensures flange connection methods and gasket interfaces remain interchangeable regardless of material.
However, galvanic corrosion can occur when bolting carbon flanges to stainless systems. Appropriate insulation or gasket material selection is necessary.
Carbon steel flanges are budget-friendly, especially in large-diameter orders. Materials like 20# or Q235 are economical and widely available.
Stainless steel flanges, particularly in F316 or higher grades, come with premium pricing due to alloy cost and processing difficulty. But they deliver better lifecycle value, especially in corrosive systems.
Stainless steel flanges offer a clean, polished appearance with smooth flange facing finish, suitable for visible piping systems or sanitary zones.
Carbon steel flanges have a darker, duller surface, typically painted or coated for corrosion protection. Finish tolerance is more variable depending on manufacturer.
Both materials follow similar dimensional codes:
Each flange must meet ISO tolerance levels to ensure leak-tight, high-performance assemblies.
Stainless steel is fully recyclable, non-toxic, and contributes to greener certifications like LEED.
Carbon steel, although recyclable, often requires coatings (paints, galvanization) that add to its environmental impact over its lifecycle.
Carbon steel is easier to machine and shape. It offers flange fabrication process flexibility, especially for custom-cut flanges.
Stainless steel work-hardens quickly, requiring more advanced tooling and slower machining speeds to avoid galling or distortion.
Both materials are available in standard ANSI flange class pressure ratings (150 to 2500). However:
Both Stainless Steel Flanges and Carbon Steel Flanges comply with key industry standards such as ASME B16.5, ASTM A105/A182, and ISO 7005-1. Your selection should depend on project environment, lifecycle costs, and performance requirements.
For harsh, corrosive, or temperature-sensitive conditions, stainless steel is the premium solution. For cost-driven, high-strength, and standard pressure-temperature systems, carbon steel delivers unmatched value.
Understanding the flange material comparison is not just about price—it’s about performance, maintenance, and peace of mind.
Make the right material choice. Choose the right flange for your Projects.
