Stainless steel flanges play a crucial role in the piping systems of industries worldwide. These flanges help connect pipes, valves, pumps, and other equipment, creating secure and leak-proof joints. The strength and versatility of stainless steel make these flanges a preferred choice for various high-pressure and high-temperature applications. This blog will explore the different types of stainless steel flanges, their specific applications, and why each type is suited for particular industries.
Stainless steel flanges are circular components used to join sections of piping. These flanges are made from stainless steel, an alloy composed primarily of iron, chromium, and nickel. The combination of these materials gives the flanges excellent corrosion resistance, strength, and durability. Stainless steel flanges are essential for preventing leaks, ensuring safety, and maintaining the integrity of piping systems across various industries such as chemical processing, oil and gas, water treatment, pharmaceuticals, and more.
These flanges come in different shapes, sizes, and materials to meet the specific demands of each application. 304 Stainless Steel Flanges, 316 Stainless Steel Flanges, and 316L Stainless Steel Flanges are some common types, each offering unique benefits based on the requirements of the system.
Stainless steel flanges are vital components in any piping system, and their value comes from their exceptional properties. Here are some of the main advantages:
Stainless steel is highly resistant to rust and corrosion due to the chromium content, which forms a protective layer on the surface. This corrosion resistance is especially valuable in harsh environments such as marine or chemical processing systems, where pipes are exposed to corrosive substances like chloride (Cl⁻) and hydrogen sulfide (H₂S). 316L Stainless Steel Flanges are often used in these environments due to their superior corrosion resistance.
Stainless steel flanges can withstand high pressure and extreme temperatures, making them ideal for industries like oil and gas, power plants, and chemical processing. For example, Weld Neck Flanges are particularly effective in high-pressure systems because their long tapered neck helps distribute stress evenly.
One of the biggest advantages of stainless steel flanges is their versatility. They can be custom-made to meet specific requirements, whether it’s for high-temperature applications in power plants or for water treatment systems that require corrosion resistance.
Stainless steel flanges are easier to maintain compared to other materials. They resist corrosion and are straightforward to clean, which is why they are often used in industries such as food processing, pharmaceuticals, and biotechnology. After polishing, these flanges have a smooth surface that helps prevent the accumulation of debris and contaminants.
A key feature of stainless steel flanges is their ability to create secure, leak-free joints. This is critical for ensuring safety in industries such as oil and gas, where even the slightest leak can lead to hazardous situations. The ability to withstand high pressures and temperatures while maintaining a leak-proof seal makes stainless steel flanges essential for these applications.
Stainless steel flanges, particularly 316L Stainless Steel Flanges, can tolerate extremely high temperatures. For example, 316L Stainless Steel Flanges are widely used in high-temperature systems like those found in chemical reactors and power plants. Their high-temperature resistance ensures that the piping system remains intact, even under challenging conditions.
Stainless steel flanges are essential components in any industrial piping system. They provide reliable, leak-proof connections between pipes, valves, pumps, and other equipment. With various types available, each suited to different applications, selecting the correct stainless steel flange is crucial for ensuring the efficiency, safety, and longevity of your system. In this section, we’ll explore the most common types of stainless steel flanges and discuss their unique features, advantages, and where each type excels.
| Flange Type | Description | Applications | Common Sizes |
| Plate Flange (PL) | Flat, disc-shaped flange without a neck. Welded directly to the pipe. | Low-pressure systems like water treatment, fire protection, HVAC. | DN 15-600 mm |
| Threaded Flange (TH) | Internal threads that screw onto the pipe’s external threads, eliminating welding. | Used in gas lines, small instrumentation piping. | DN 15-300 mm |
| Socket Welding Flange (SW) | Pipe fits into a socket in the flange and is welded around the circumference. | High-pressure systems with small-diameter pipes like chemical reactors, steam lines. | DN 15-50 mm |
| Blind Flange (BL) | Solid flange used to seal the end of a pipe or vessel. | Pressure testing, system isolation, and maintenance. | DN 15-1000 mm |
| Slip-On Flange (SO) | Slides over the pipe and is welded both inside and outside. | Cooling water pipelines, non-critical piping systems. | DN 15-600 mm |
| Weld Neck Flange (WN) | Long tapered neck that ensures even stress distribution. | High-pressure, high-temperature systems like oil refineries, chemical processing. | DN 25-2500 mm |
| Lap Joint Flange (LJ) | Two-piece design, allowing for easy alignment and disassembly. | Used for large-diameter systems, food processing, pharmaceuticals. | DN 50-600 mm |
| Raised Face Flange (RF) | Raised area around the bore to enhance sealing. | Chemical plants, petrochemical industries, power plants. | DN 15-1500 mm |
| Ring Type Joint Flange (RTJ) | Features grooves for a metal sealing ring, ensuring a high-pressure seal. | Used in high-pressure systems like oil and gas pipelines, offshore platforms. | DN 50-2500 mm |
| Butt Weld Flange (BW) | Welded directly to the pipe for a continuous flow. | Power plants, high-pressure systems like boilers and steam systems. | DN 25-600 mm |
| Stub End Flange (SE) | Short pipe with a flange welded to one end, used with a lap joint flange. | Food and pharmaceutical pipelines, seawater desalination systems. | DN 50-1000 mm |
Characteristics:
Plate flanges are flat, circular discs welded to the pipe without a neck. Their simple design makes them affordable and easy to install. These flanges are typically used for low-pressure applications and are widely available in various sizes.
Applications:
Plate flanges are perfect for low-pressure piping systems such as fire protection systems, water treatment facilities, and HVAC systems. They are also commonly used in drainage systems, cooling water pipelines, and non-critical gas lines.
Why it works:
The simple design and low cost of plate flanges make them an ideal choice for applications that don’t require extreme pressure or temperature resistance. Their lack of a neck reduces the material cost, making them a popular option in industries where cost-efficiency is a priority, such as in water distribution systems or air conditioning pipelines.

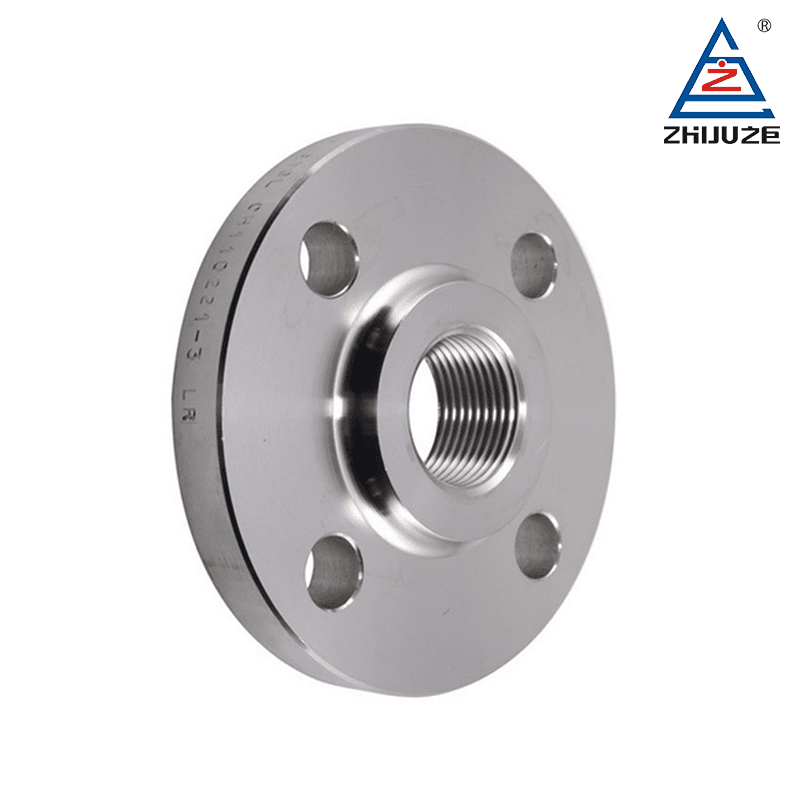

Characteristics:
Threaded flanges have internal threads that allow them to be screwed directly onto the pipe. This eliminates the need for welding, making them an excellent option for systems that require easy assembly and disassembly.
Applications:
Threaded flanges are ideal for fuel lines, gas distribution systems, and low-pressure instrumentation applications. They are commonly used in small-diameter piping systems where welding is not an option, or where ease of disassembly is crucial.
Why it works:
Threaded flanges are great for temporary systems or where maintenance and reconfiguration are frequent. They are suitable for low-pressure applications in non-critical fluid transport systems, making them popular in industries like pharmaceuticals, food processing, and fuel distribution.
Characteristics:
Socket weld flanges have a socket into which the pipe is inserted, then welded into place. This design minimizes the risk of leakage and provides a strong, durable connection, even under high pressure.
Applications:
Socket welding flanges are widely used in high-pressure, small-diameter applications, such as chemical reactors, steam lines, pharmaceutical systems, and oil pipelines.
Why it works:
Socket weld flanges are ideal for small-diameter, high-pressure systems because they provide a secure and durable connection. The welding ensures the flange and pipe are securely attached, making them suitable for high-pressure systems in chemical processing and petrochemical plants, where reliability is crucial.

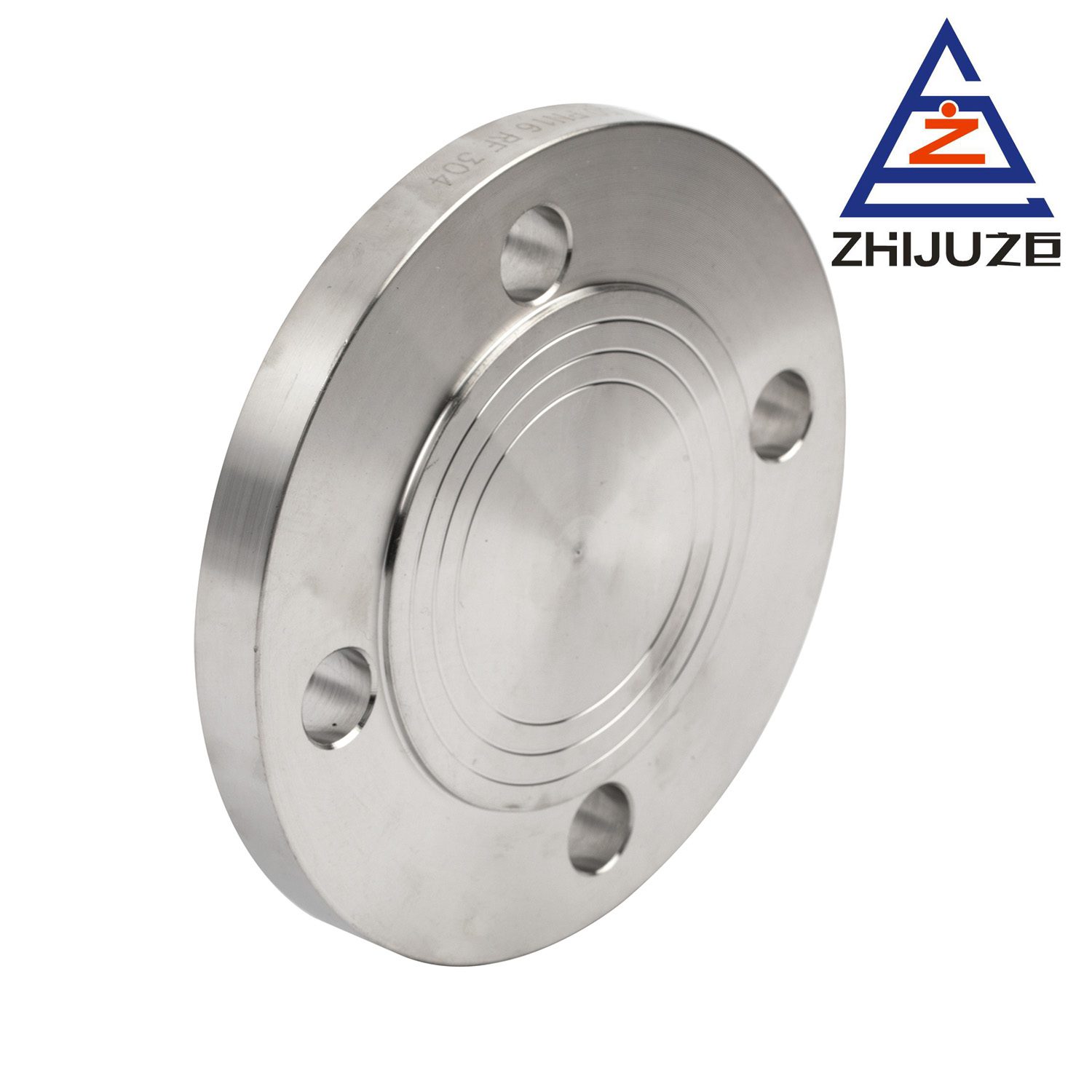

Characteristics:
Blind flanges are solid, circular discs with no hole in the center, designed to seal the end of a pipe or to close off sections of a piping system. These are primarily used for isolation, maintenance, or pressure testing.
Applications:
Blind flanges are typically used in oil and gas pipelines, pressure testing systems, and chemical plants. They are also used to close off pipe ends temporarily during maintenance or repairs in high-pressure systems.
Why it works:
Blind flanges provide 100% isolation, making them ideal for pressure testing or when a system needs to be isolated for future modifications. They are commonly used in refining and chemical processing plants, where safety and integrity are paramount during maintenance or system shutdowns.

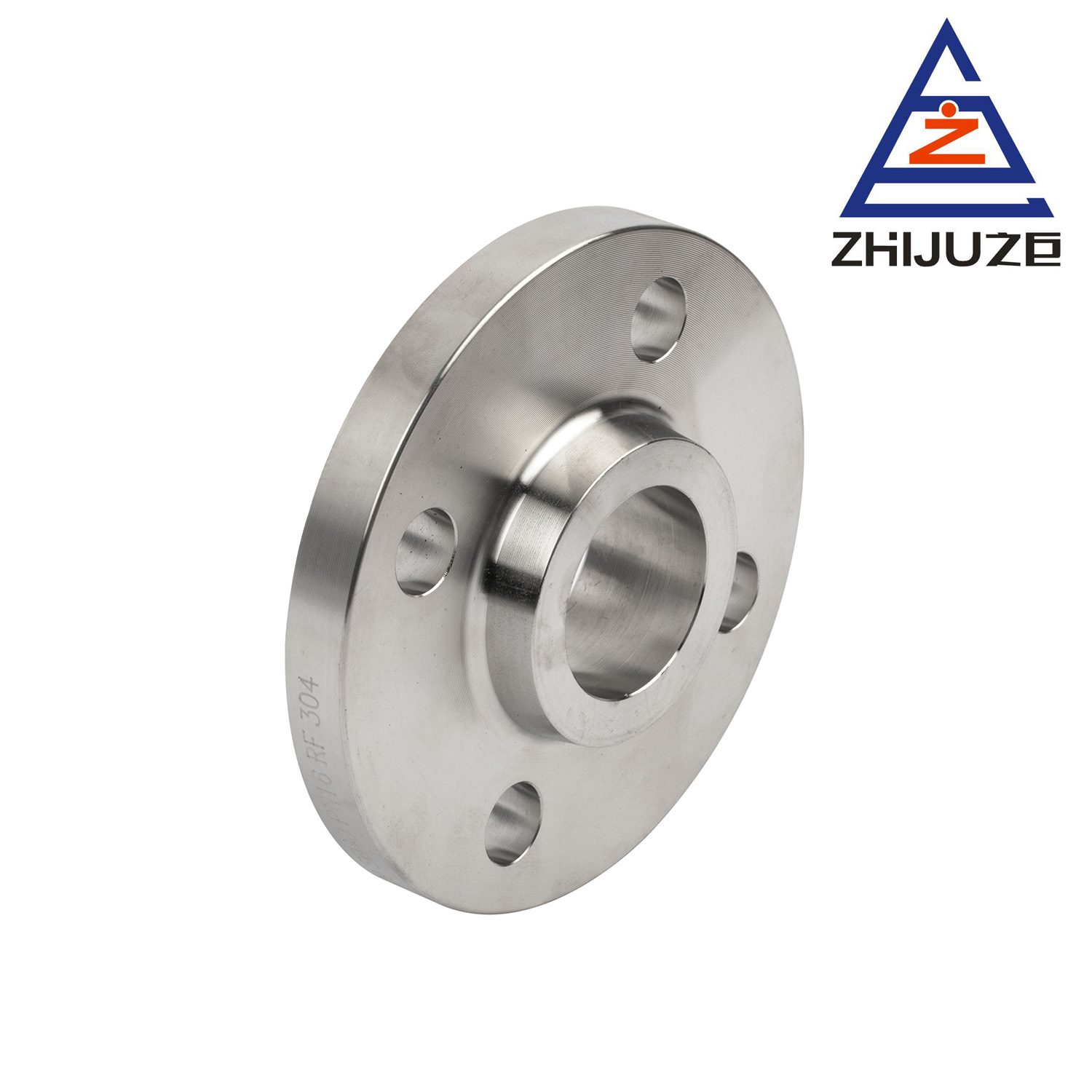

Characteristics:
Slip-on flanges are easy to install, as they simply slide over the pipe and are then welded into place. They are cost-effective and suitable for systems that don’t need the additional strength of a weld neck flange.
Applications:
Slip-on flanges are used in cooling water systems, non-critical piping systems, and fire suppression systems. They are commonly found in low-pressure applications, including HVAC systems and water distribution pipelines.
Why it works:
The ease of installation and cost-efficiency of slip-on flanges make them an excellent choice for low-pressure systems. While they may not be suitable for high-pressure environments, they are ideal for cost-sensitive projects such as fire sprinkler systems or non-critical cooling water lines in commercial or industrial buildings.

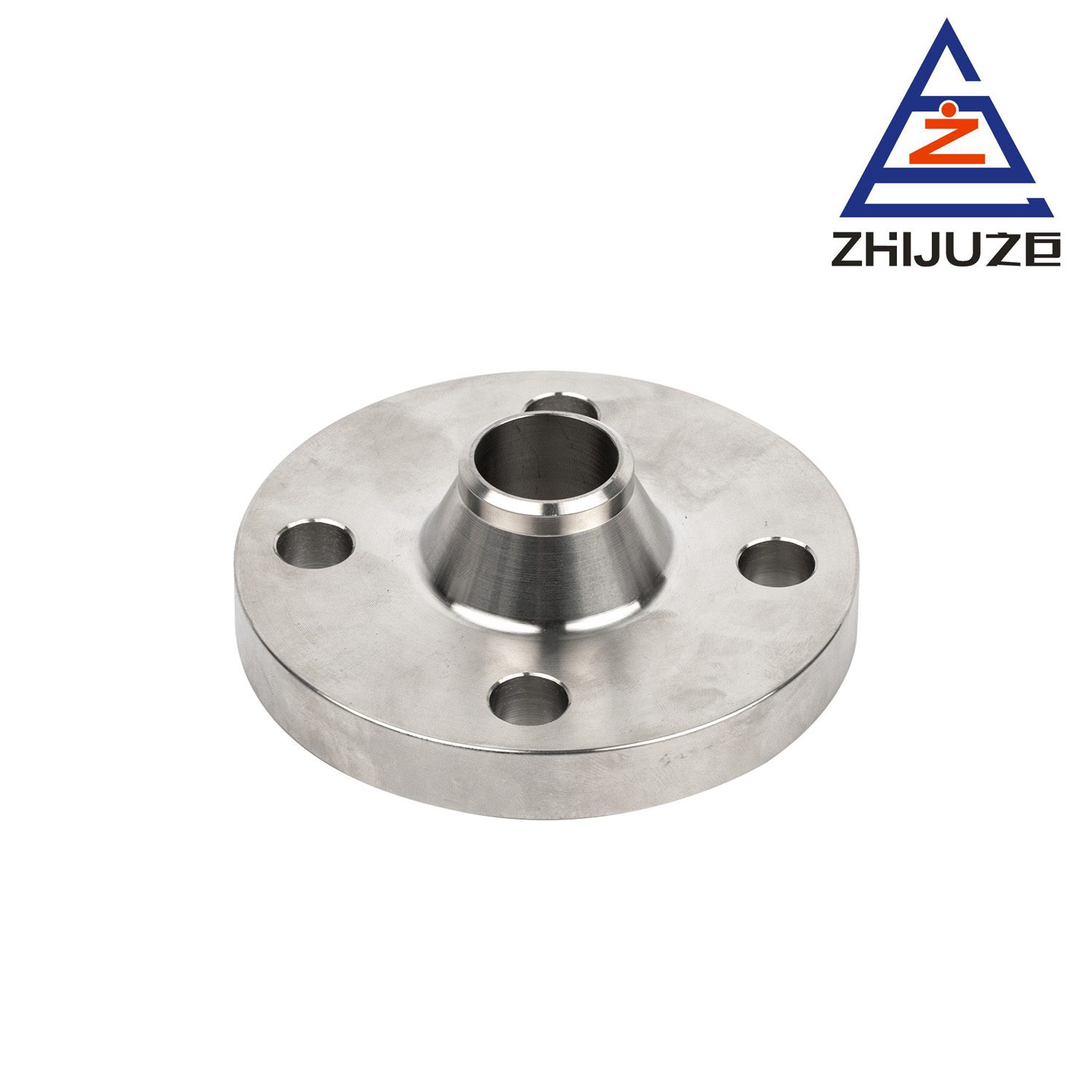

Characteristics:
Weld neck flanges have a long, tapered neck that gradually increases in diameter to match the pipe. This design helps distribute stresses more evenly and reduces stress concentrations, making it suitable for high-pressure systems.
Applications:
Weld neck flanges are used in high-pressure, high-temperature systems such as oil and gas pipelines, chemical reactors, steam systems, and power plants. These flanges are essential for offshore oil rigs, LNG terminals, and refining operations where strength and reliability are critical.
Why it works:
Weld neck flanges provide a smooth transition between the pipe and the flange, minimizing stress concentrations. This feature makes them ideal for high-pressure environments such as oil refineries and power plants, where stress and temperature fluctuations are common.

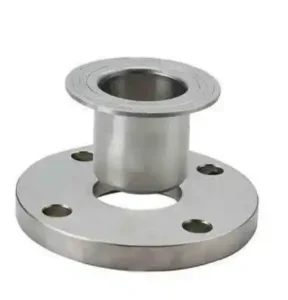

Characteristics:
Lap joint flanges consist of a stub end welded to the pipe and a loose flange that can rotate. This design allows for easier alignment and is particularly useful for systems that require frequent disassembly.
Applications:
Lap joint flanges are used in large-diameter piping systems, seawater desalination plants, and food-grade systems. They are common in marine applications and chemical processes that require frequent maintenance or cleaning.
Why it works:
The ability of lap joint flanges to rotate simplifies the installation and alignment process, making them ideal for large-diameter systems where alignment could be difficult. They are especially useful for systems requiring frequent maintenance, such as food processing pipelines or marine desalination systems.

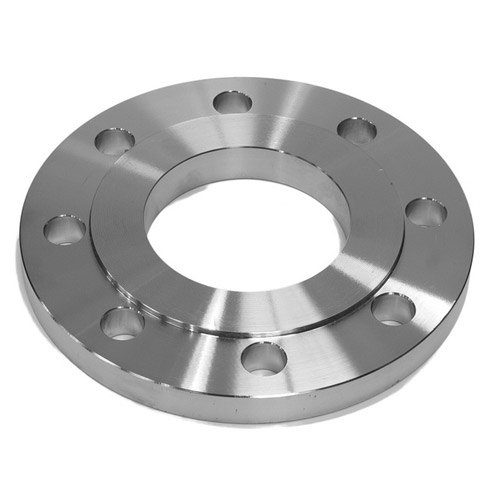

Characteristics:
Raised face flanges have a raised ring around the center of the flange where the gasket sits. This helps create a better seal and ensures that pressure is evenly distributed across the gasket.
Applications:
Raised face flanges are used in chemical processing plants, oil refineries, power plants, and water treatment systems. They are the most commonly used flange type in various industrial applications due to their cost-effectiveness and strong sealing properties.
Why it works:
The raised face provides higher sealing pressure, making the flange ideal for systems where leakage is a significant concern. Its ability to accommodate a wide range of gaskets makes it versatile, and it is used extensively across industries, including chemical processing, pharmaceuticals, and petrochemical industries.
Characteristics:
Ring type joint flanges feature a metal ring inserted into a groove on the flange face, creating a high-pressure seal. These flanges are built to withstand extreme temperatures and pressures.
Applications:
RTJ flanges are commonly used in high-pressure oil and gas pipelines, chemical reactors, and offshore platforms. They are particularly useful for high-pressure systems such as those found in natural gas transmission and refining operations.
Why it works:
The metal ring ensures a tight seal even in extreme conditions, making it perfect for high-temperature, high-pressure applications. This makes RTJ flanges essential for oil and gas production systems and other critical applications where leakage can lead to catastrophic failures.
Characteristics:
Butt weld flanges are typically used with Weld Neck Flanges. They offer a seamless, strong connection between the pipe and flange, ensuring minimal turbulence and high strength. These flanges are designed for high-pressure systems.
Applications:
Butt weld flanges are used in high-pressure, high-temperature systems such as boilers, steam pipelines, and chemical reactors. They are essential in petrochemical plants, power generation systems, and critical industrial systems that require reliable and leak-proof connections.
Why it works:
The continuous and smooth connection provided by the butt weld process ensures minimal resistance to flow and prevents turbulence. This design is ideal for systems with high pressure and temperature, such as steam lines in power plants or high-temperature chemical reactors.
Characteristics:
Stub end flanges feature a short section of pipe welded to the flange, allowing for easy disassembly. The stub end is often paired with a lap joint flange for systems requiring frequent maintenance.
Applications:
Stub end flanges are ideal for food processing systems, pharmaceutical lines, and seawater desalination plants where maintenance or cleaning is required regularly.
Why it works:
The combination of stub end and lap joint flange allows for easy disassembly and reconfiguration, making it ideal for systems that require frequent cleaning or maintenance. This feature is especially useful in food-grade applications, pharmaceuticals, and marine systems that need easy reassembly.
When purchasing stainless steel flanges, it’s essential to consider factors such as material grade, pressure rating, and standards compliance. The most common standards for flanges are:
ASME B16.5: Covers flanges for sizes ½ inch to 24 inches and pressure ratings from Class 150 to 2500.
DIN Flanges: Common in European applications, specifying metric sizes and various pressure ratings.
API 6A Flange: Specifically designed for the oil and gas industry, covering flanges used in high-pressure environments.
It’s important to consult industry experts to choose the right flange based on your system’s requirements.
Selecting the right stainless steel flange is crucial for the efficiency, safety, and longevity of your piping system. Whether you’re dealing with high-pressure systems, chemical processes, or non-critical applications, there is a flange type that meets your specific needs. For more detailed comparisons and to help you choose between flange types, including the distinctions between Slip-On Flange and Weld Neck Flange, check out this detailed guide on Slip-On vs Weld Neck Flange: What’s the Difference?.
By understanding the advantages of each flange type, you can ensure your system operates efficiently and safely for years to come.
