Eccentric Reducer Fittings Supplier

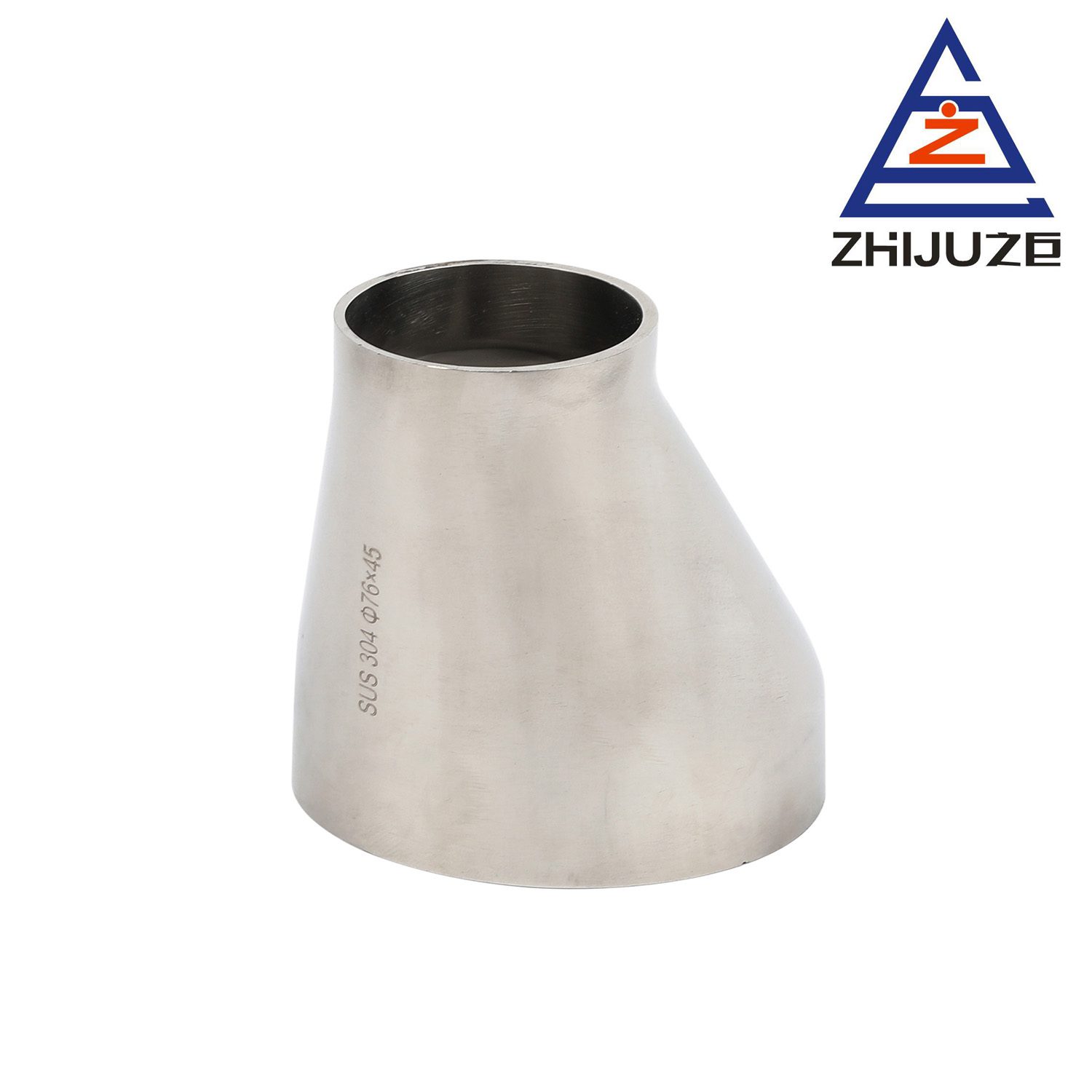

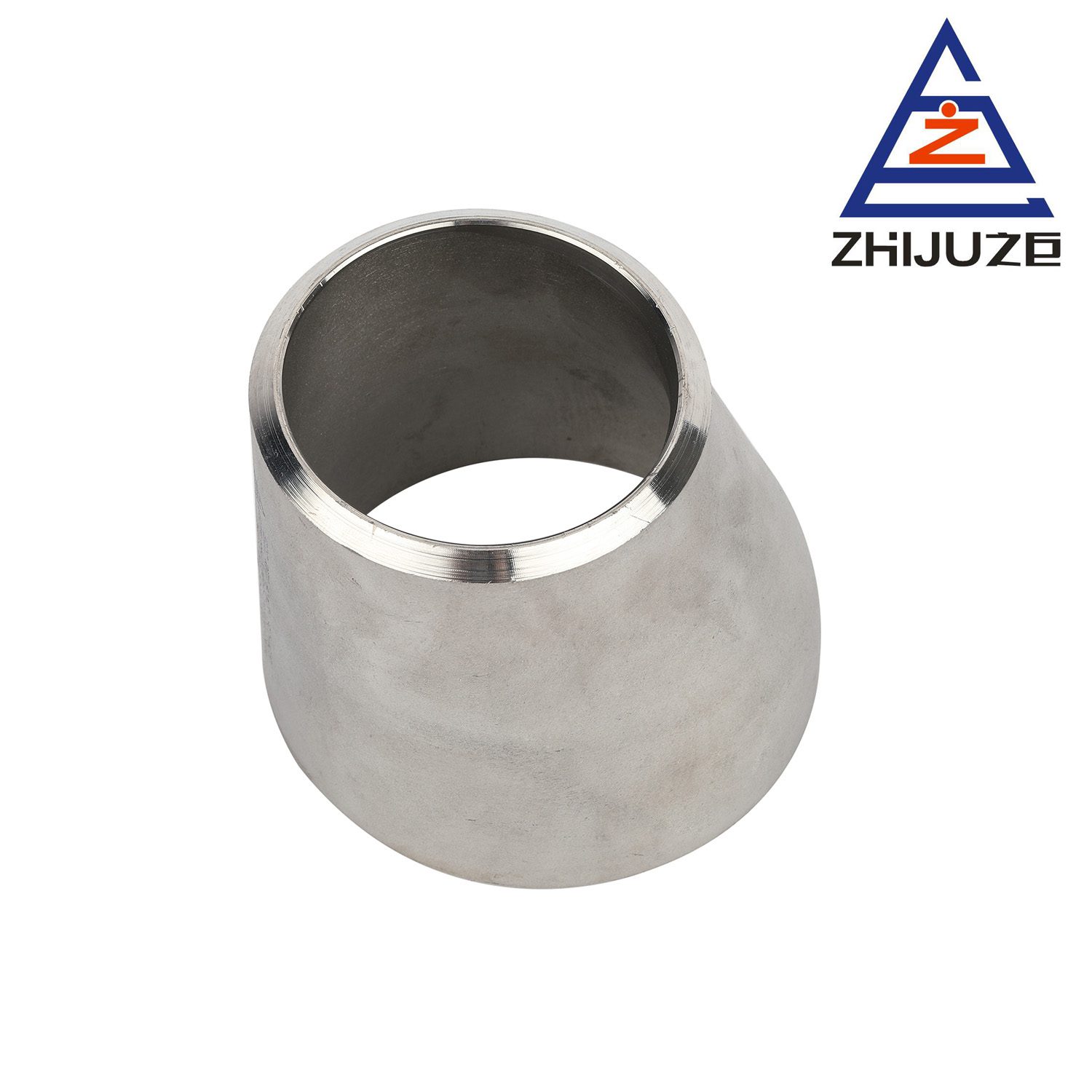

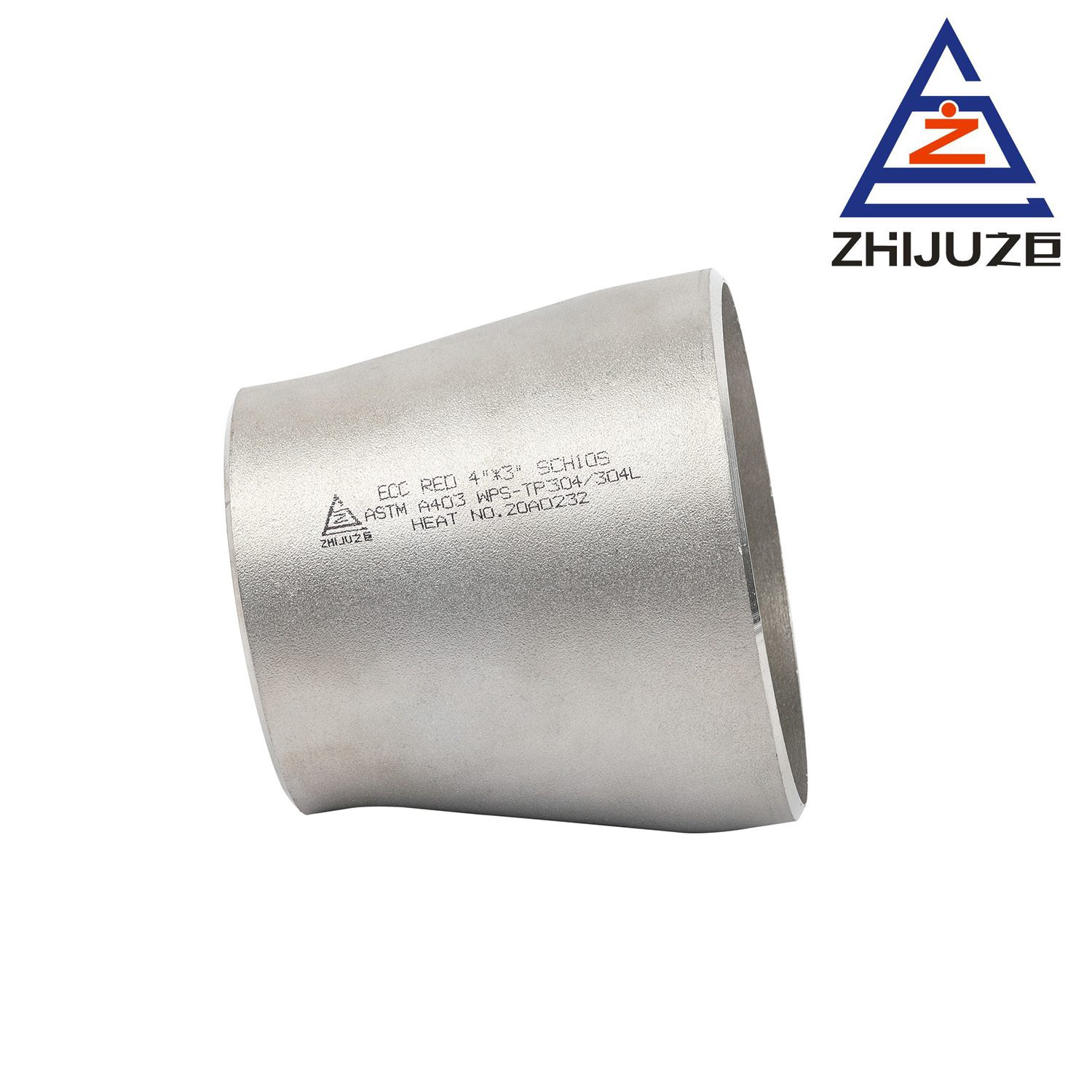

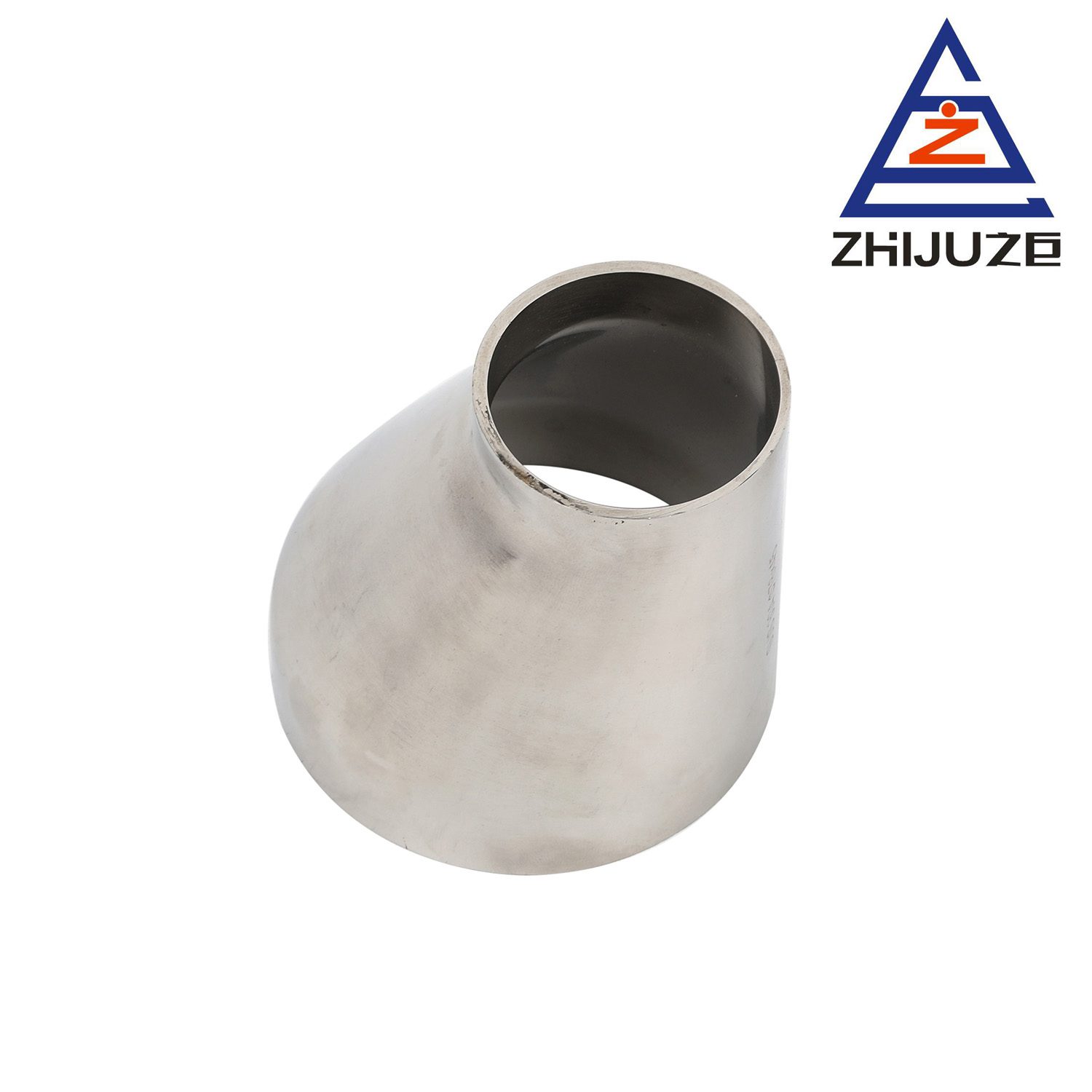

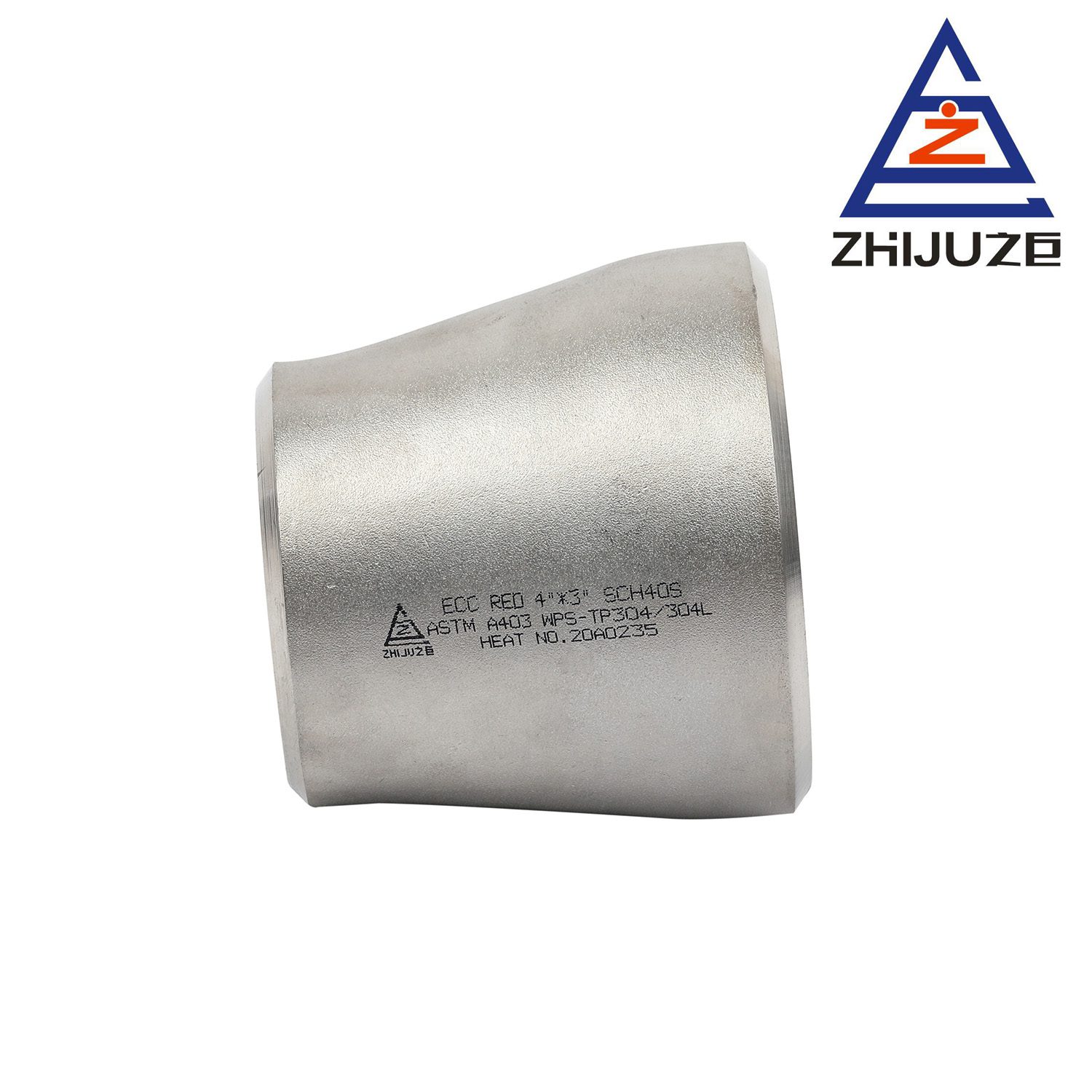

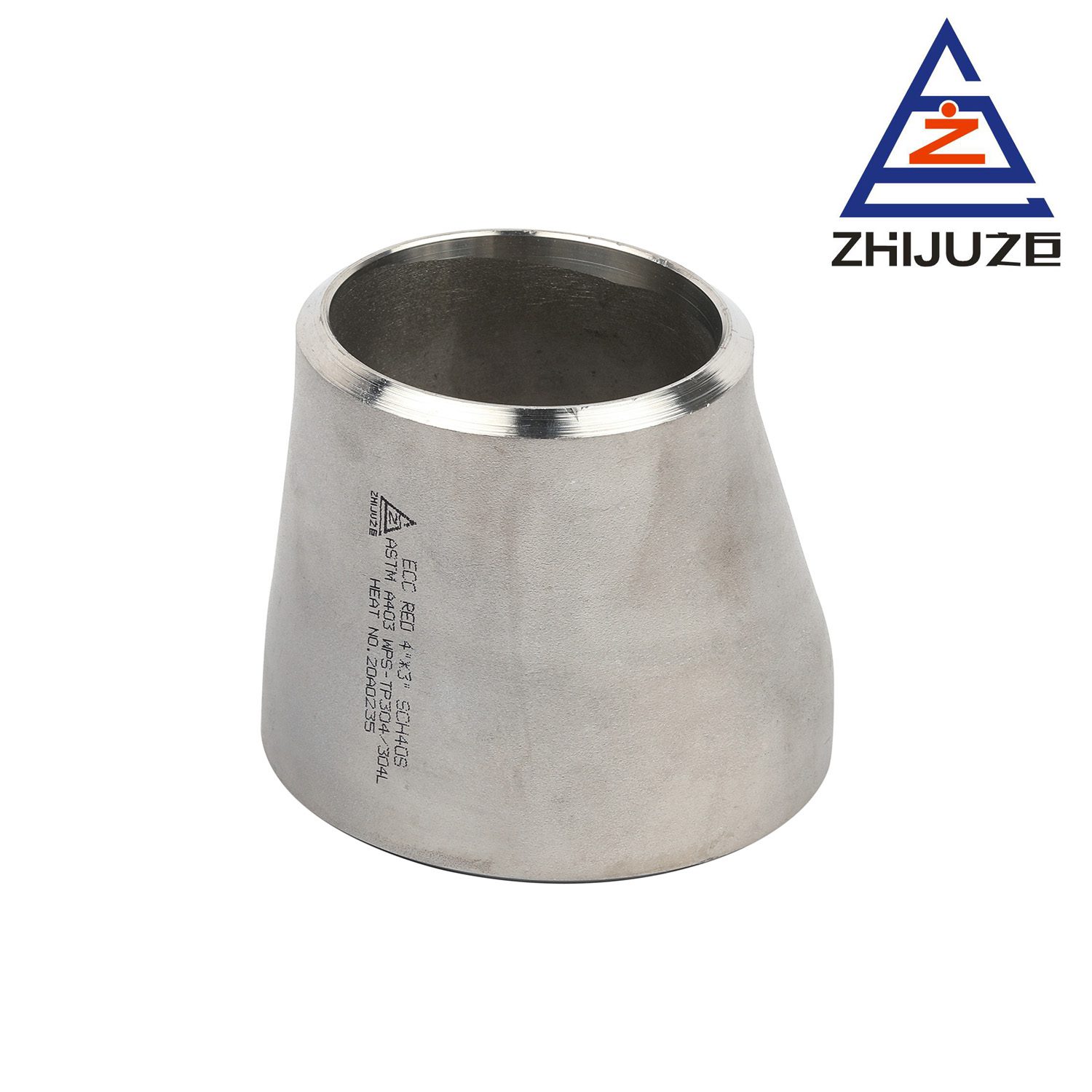

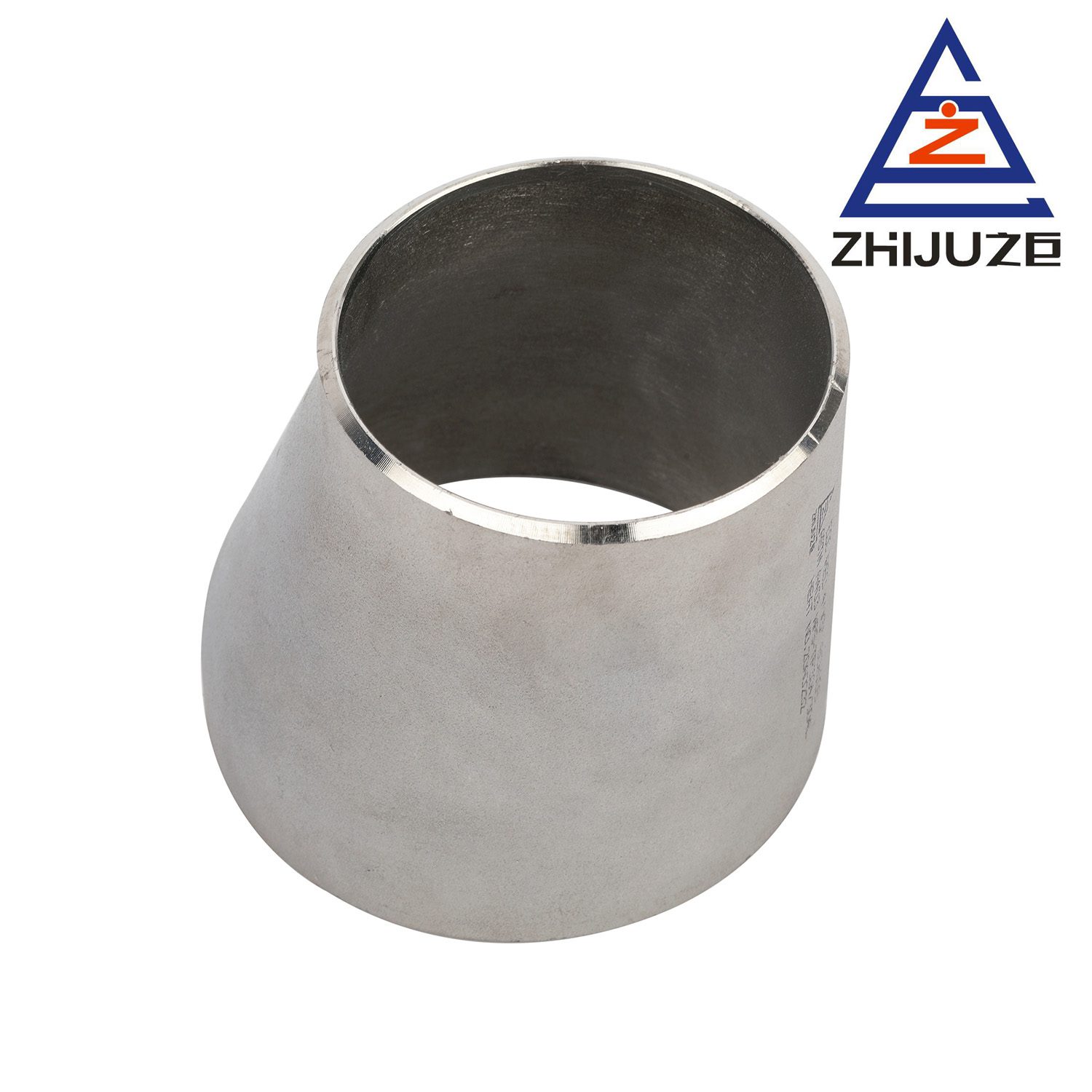

Eccentric Reducer

The product specification

1.NPS：DN15 – DN2000 (1/2″ – 80″)

2.Wall Thickness (THK)：Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS

3.Material：TP304L, TP316L, TP310, TP321, TP904L, DUPLEX 2205, 2507

Product Introduction

The Eccentric Reducer offers an innovative solution for complex piping systems with its unique asymmetric design. Manufactured using precision die-forming technology, it achieves parallel offset between centerlines through specialized mold design and accurate temperature control. Its distinctive flat-bottom design enables diameter transition while maintaining a level bottom or top alignment, effectively resolving technical challenges related to cavitation and liquid accumulation in pipelines.

The materials undergo solution annealing to ensure homogeneous microstructure and stable mechanical properties. Precise dimensional control guarantees easy installation and reliable sealing. This product series is certified by the EU PED and holds BV Factory Approval, among others. It is exported to dozens of countries and regions across Europe, the Americas, the Middle East, Southeast Asia, and Australia, and serves a wide range of industries including chemical, defense, medical, energy, power, and shipbuilding.

Product Parameters

NPS	DN15 – DN2000 (1/2″ – 80″)
Wall Thickness (THK)	Sch5s, Sch10s, Sch10, Sch20, Sch30, Sch40s, STD, Sch40, Sch80s, XS, Sch80, Sch100, Sch120, Sch140, Sch160, XXS
Material	TP304L, TP316L, TP310, TP321, TP904L, DUPLEX 2205, 2507

Core Technology

The manufacturing processes include hot pressing, push forming, or stamping, and must comply with standards such as GB/T 12459 (Chinese National Standard) and ANSI B16.9 (American Standard).
