Professional 90° SR Elbow Manufacturer

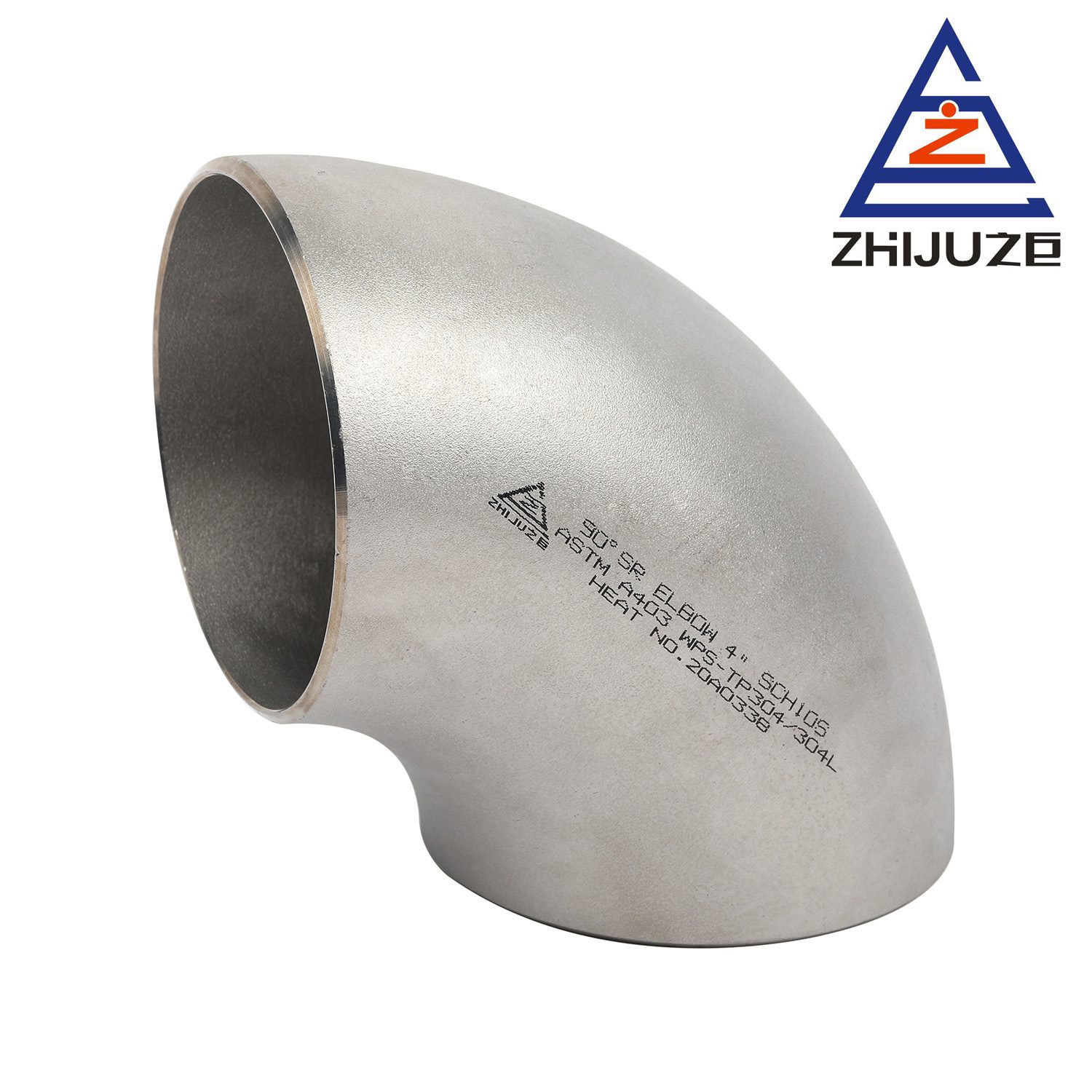

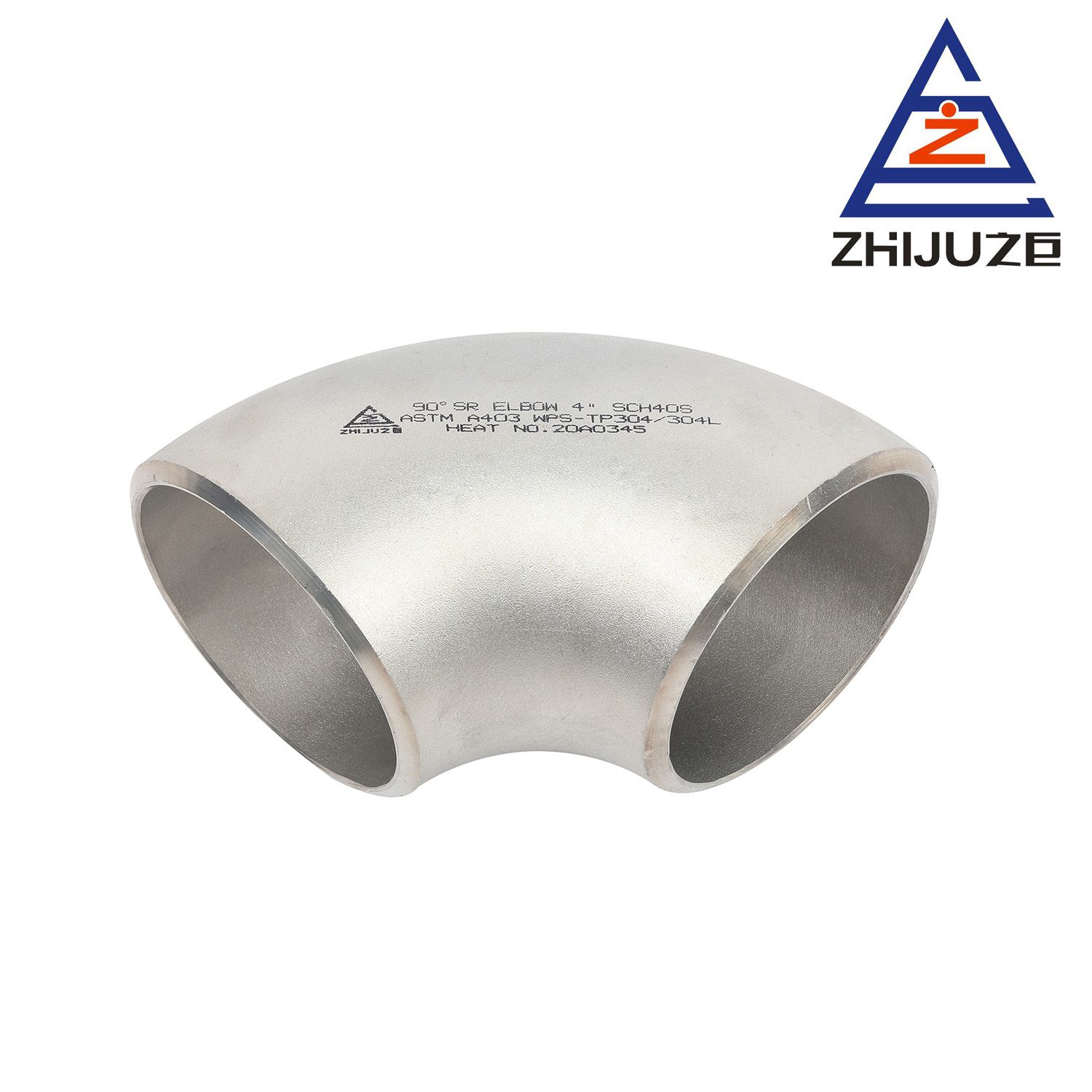

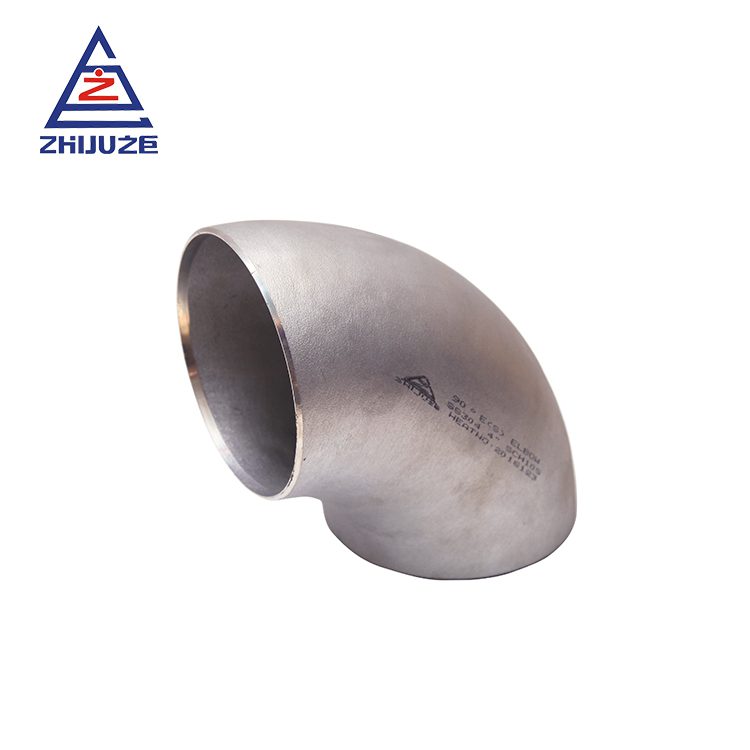

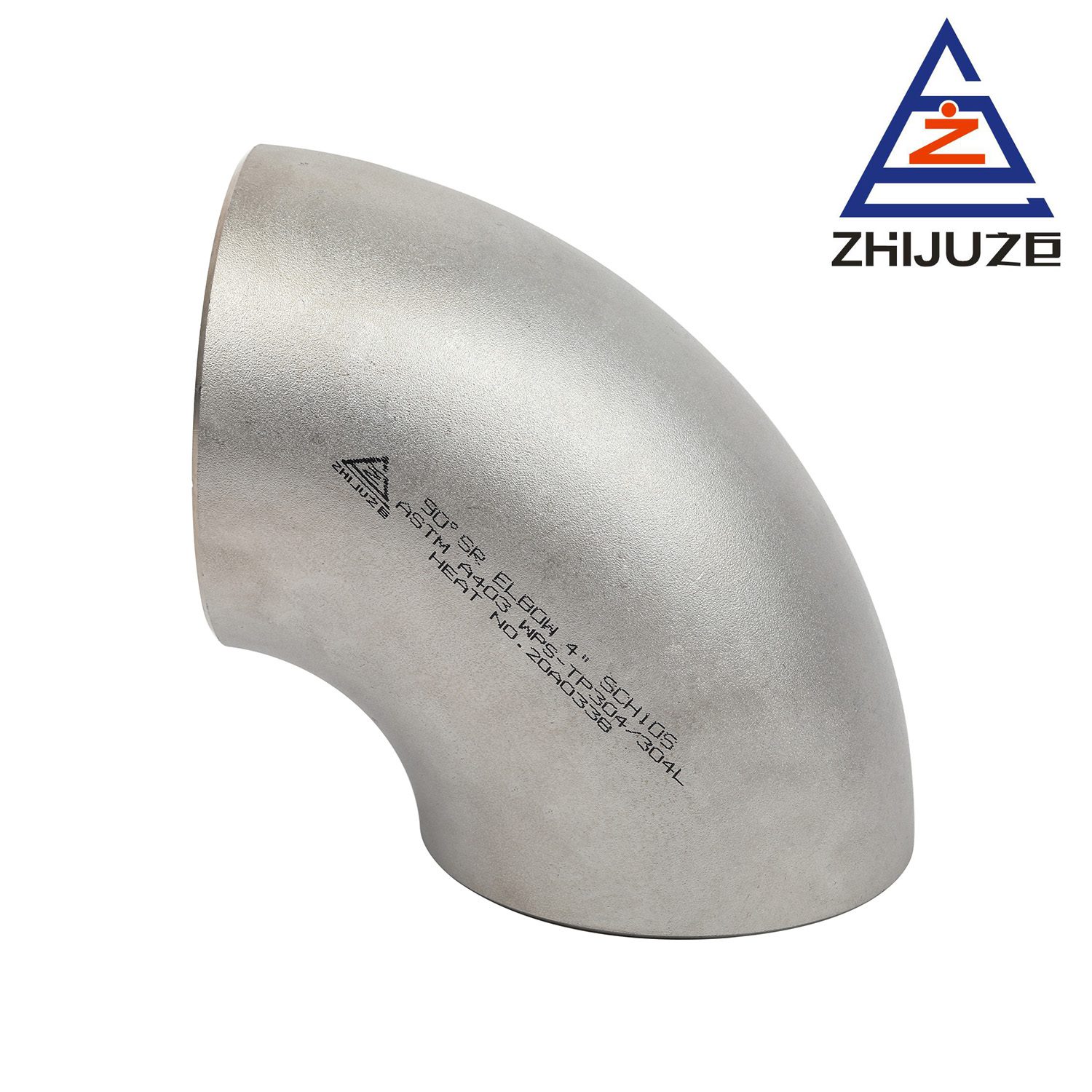

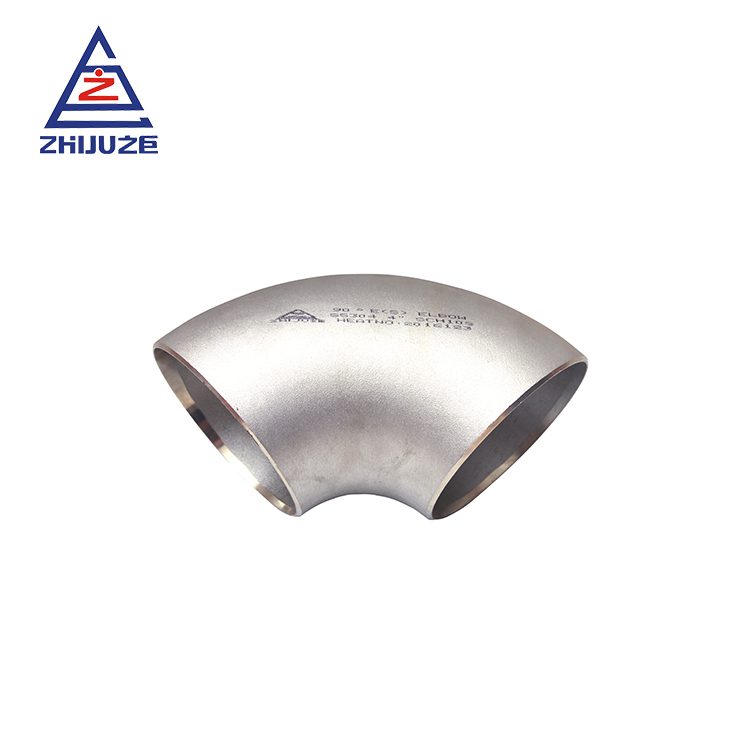

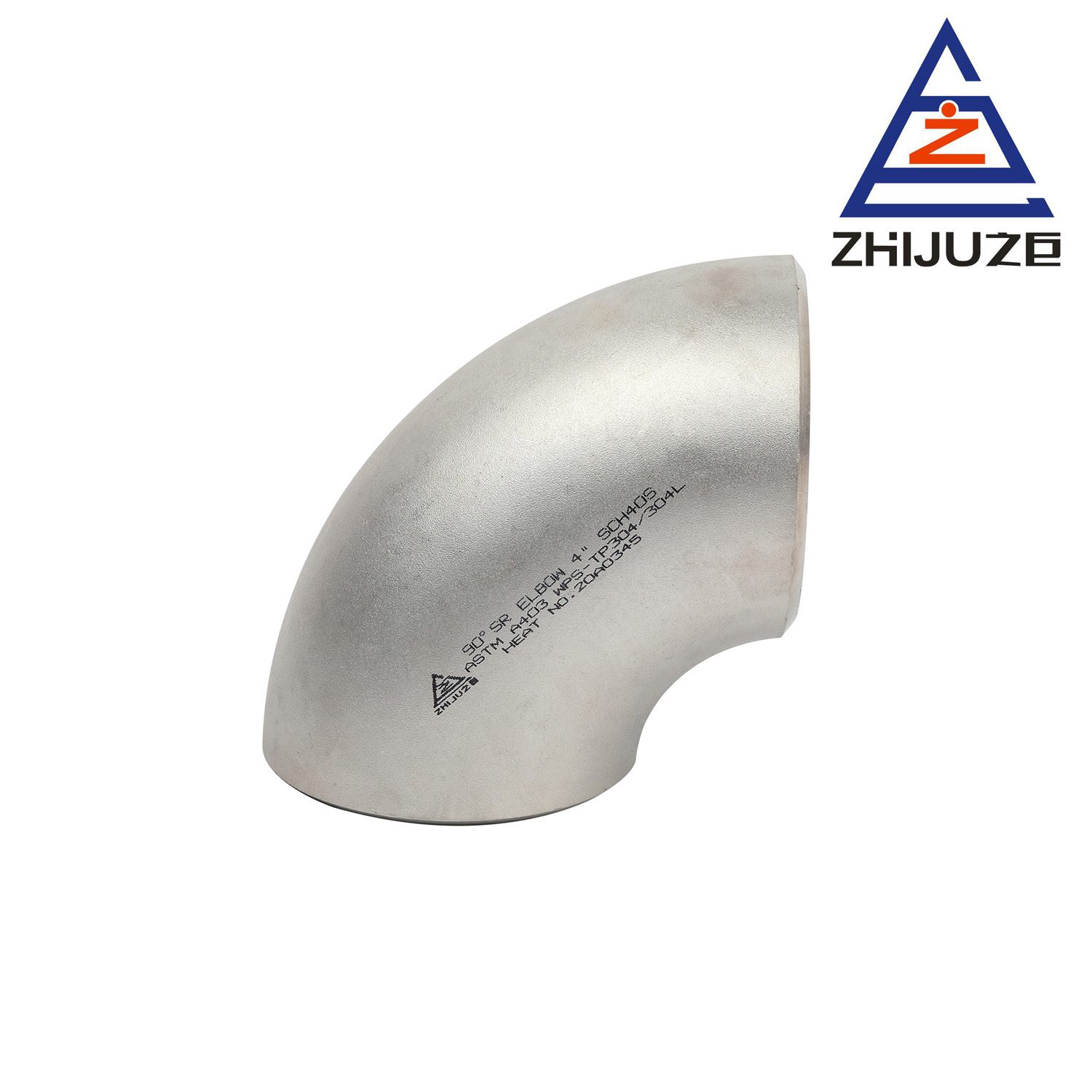

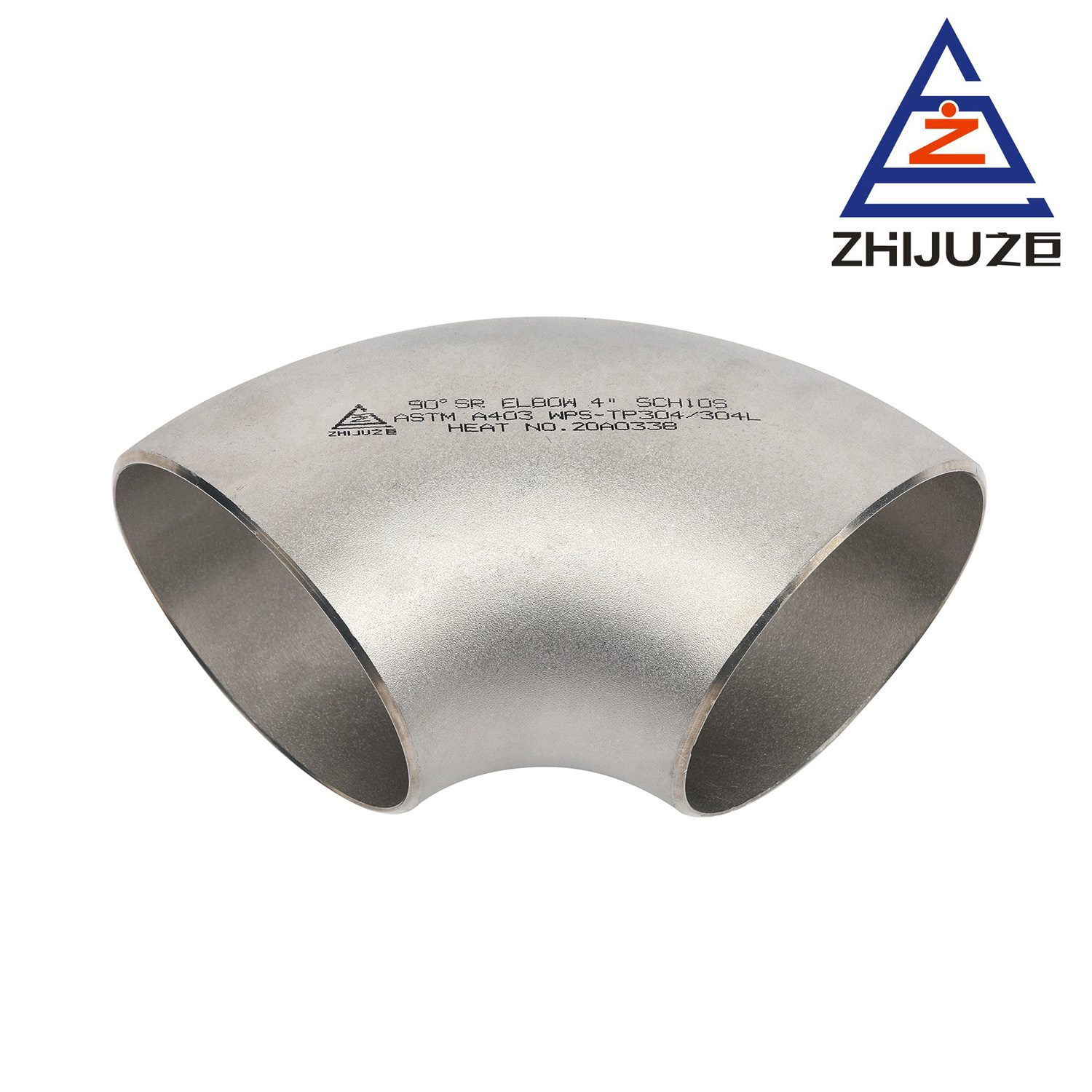

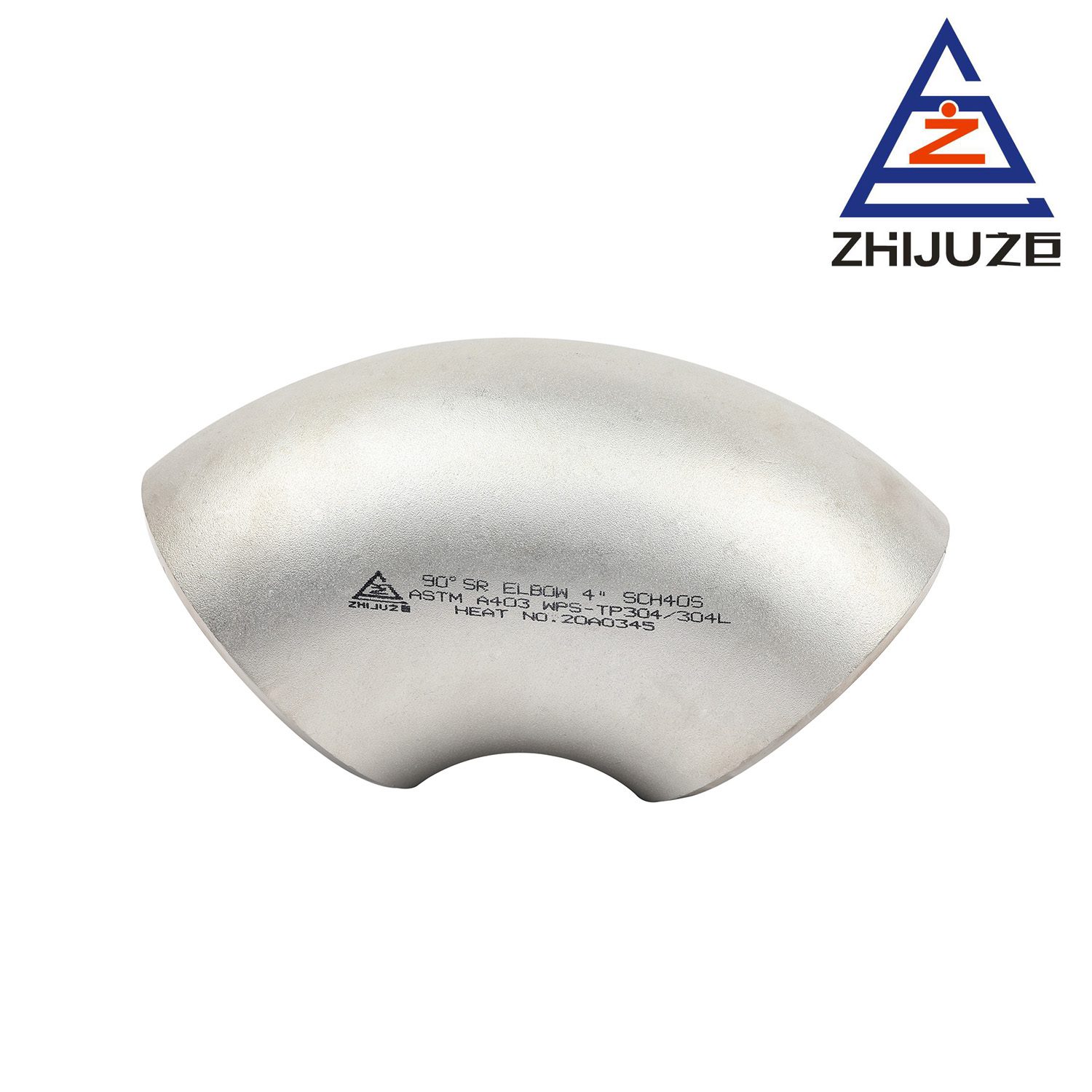

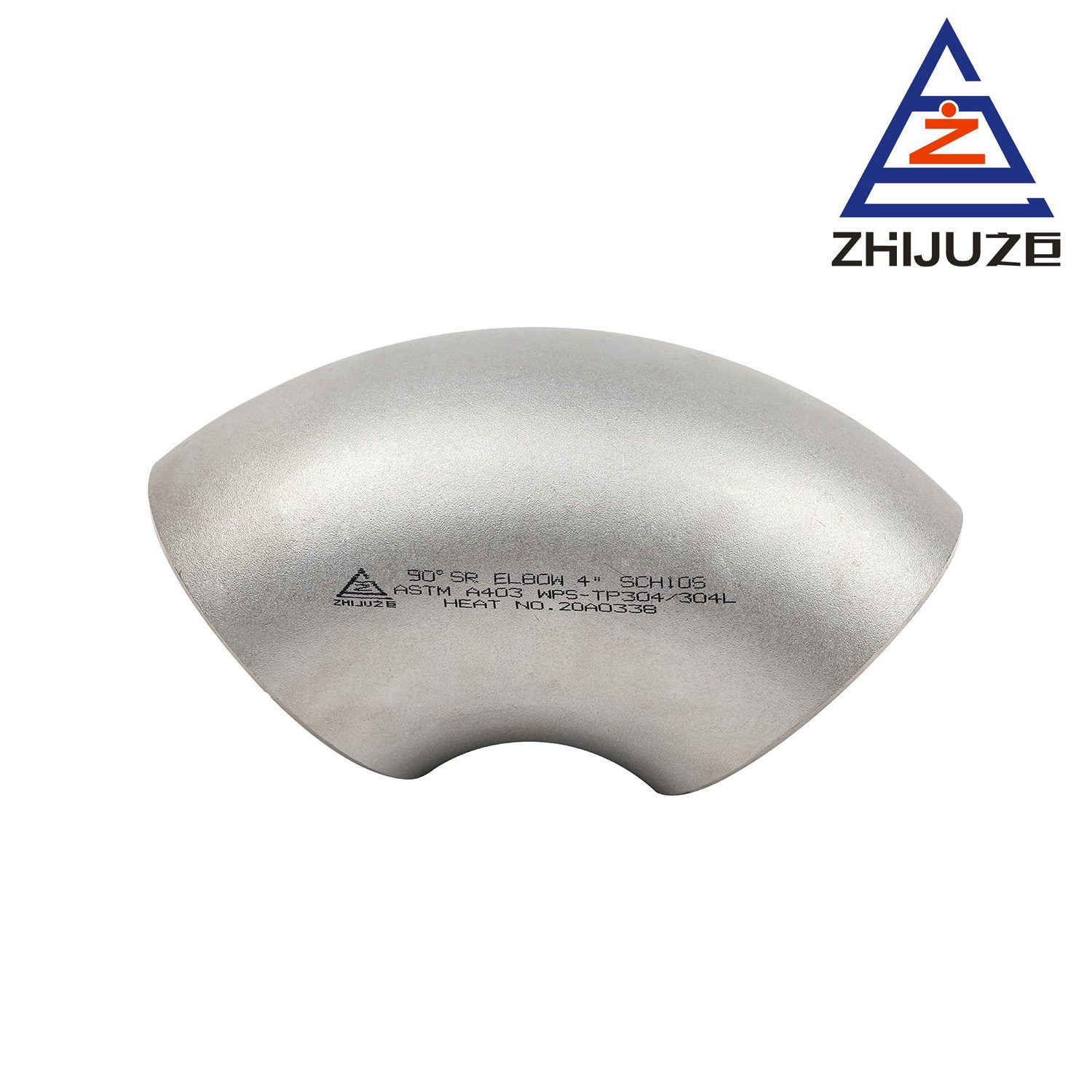

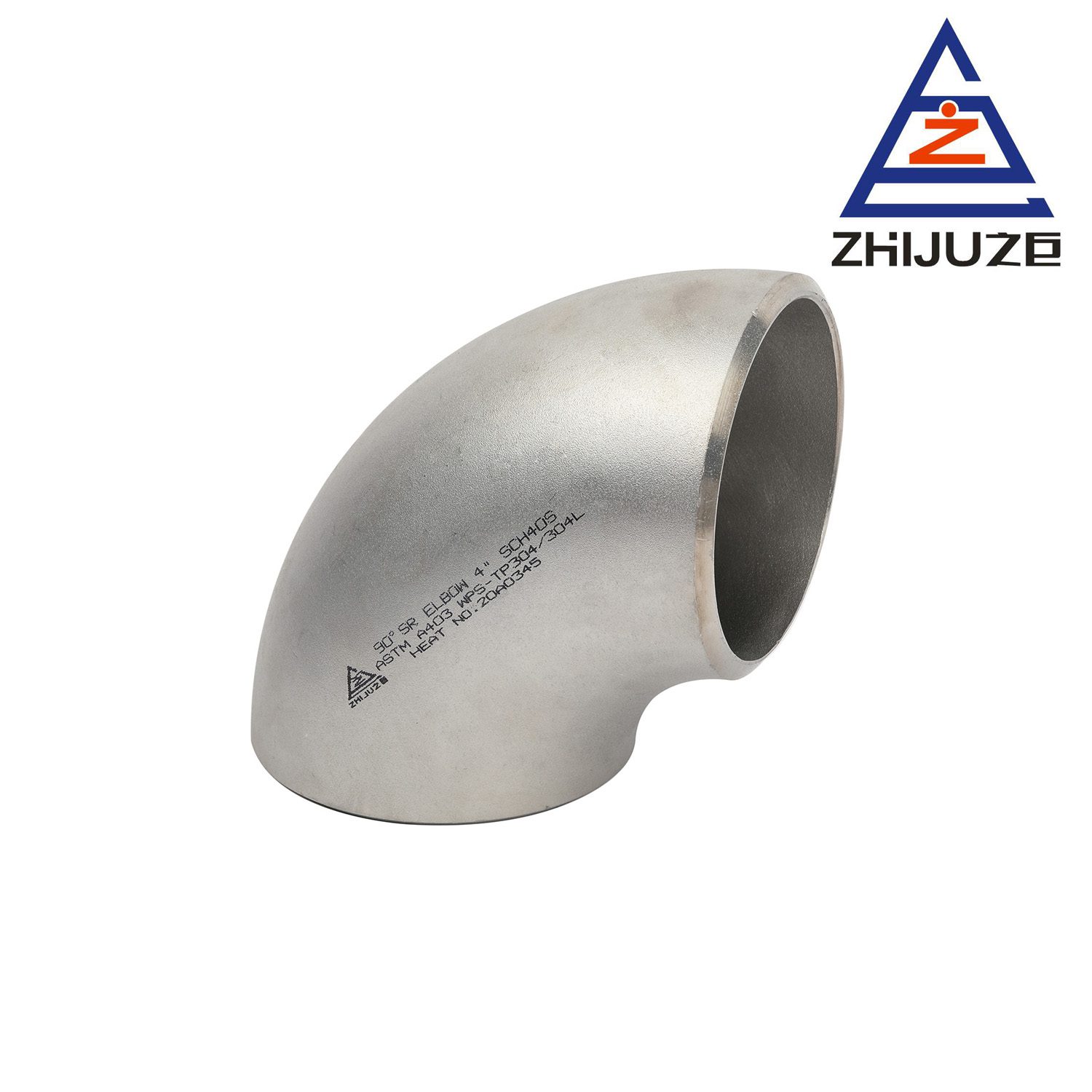

90° SR Elbow

The product specification
1.NPS：DN15-DN2000,1/2″-80″
2.THK：Sch5s、Sch10s、Sch10、Sch20、Sch30、Sch40s、STD、Sch40、Sch80s、XS、Sch80、Sch100、Sch120、Sch140、Sch160、XXS
3.Material：
①Stainless Steel: 31254, 904/L, 347/H, 317/L, 310S, 309, 316Ti, 321/H, 304/L, 304H, 316/L, 316H
②DP Steel: UNS S31803, S32205, S32750, S32760
③Alloy steel: N04400, N08800, N08810, N08811, N08825, N08020, N08031, N06600, N06625, N08926, N08031, N10276

Product Introduction

In applications where pressure and flow stability are essential—such as in hydraulic or chemical transport systems—this stainless steel elbow proves to be a vital component. Its durability under high temperatures and resistance to internal corrosion make it suitable for rigorous use. The design’s long radius further enhances its ability to accommodate smooth directional changes without inducing stress on the piping system, which is especially important in high-pressure scenarios.

Product Parameters

NPS

DN15-DN2000,1/2″-80″

THK

Sch5s、Sch10s、Sch10、Sch20、Sch30、Sch40s、STD、Sch40、Sch80s、XS、Sch80、Sch100、Sch120、Sch140、Sch160、XXS

Material

①Stainless Steel: 31254, 904/L, 347/H, 317/L, 310S, 309, 316Ti, 321/H, 304/L, 304H, 316/L, 316H

②DP Steel: UNS S31803, S32205, S32750, S32760

③Alloy steel: N04400, N08800, N08810, N08811, N08825, N08020, N08031, N06600, N06625, N08926, N08031, N10276

Core Technology

Material-Equipment Compatibility: Selects corrosion-resistant stainless steel (e.g., 316L), matched with specialized electrodes (e.g., A022) and inert gas shielding to ensure weld integrity.
