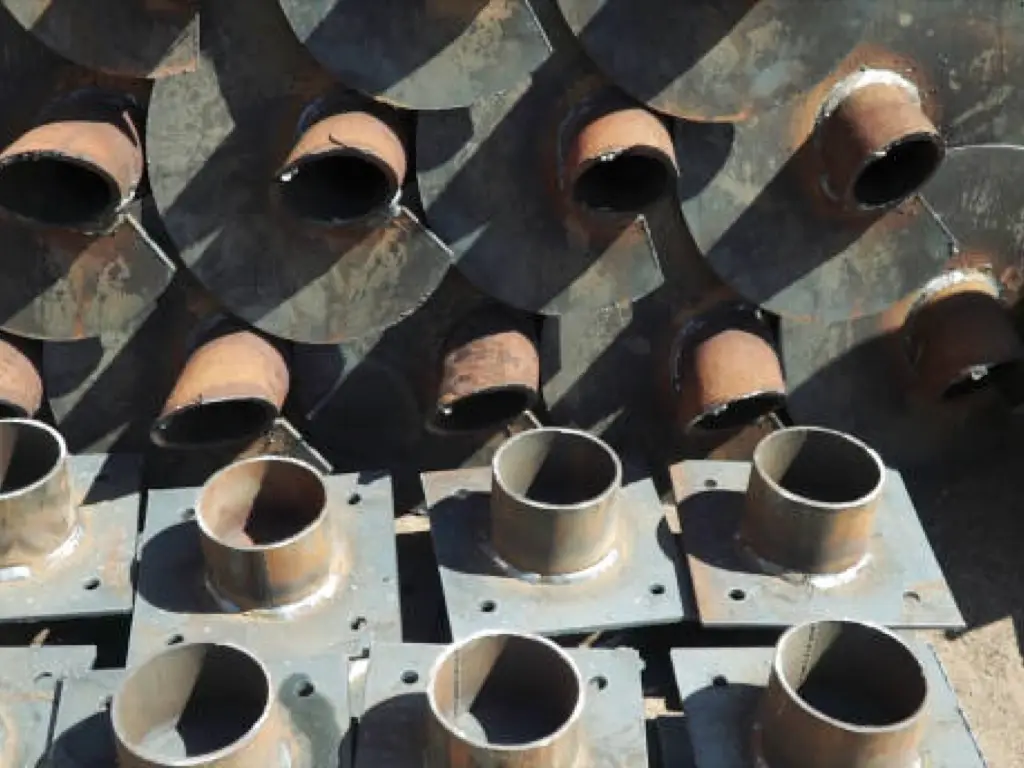

Socket Welding vs Butt Welding plays a critical role in industrial piping systems, where the integrity and durability of connections are essential. Whether you’re designing for petrochemical plants, high-pressure hydraulic circuits, or large-scale water treatment, the welding method you select can significantly impact long-term system performance. Each welding joint type comes with its own specifications, standards, and application scope. Understanding the difference between butt weld vs socket weld enables engineers and procurement specialists to make informed, reliable decisions for safer and more efficient piping systems.
Socket welding is a process where the pipe is inserted into a recessed area of a fitting, valve, or flange. A fillet weld is then applied around the outer edge. This method is commonly used for small-diameter high-pressure pipes (typically NPS 2 or below).

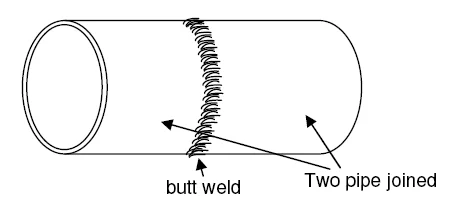

Butt welding (also known as BW welding) joins two pipes end-to-end. The pipe ends are beveled to create a groove weld and then joined with a full penetration weld. This technique offers a smooth inner surface, minimizing flow resistance and buildup.
Understanding the differences between butt weld fittings and socket weld fittings is essential for choosing the right welding joint type.
Weld groove shape. The groove is divided into different groove shapes, such as I-shaped (no groove), V-shaped, single-sided V-shaped, U-shaped, double U-shaped, and J-shaped.
Butt welding requires precise end preparation, usually with a chamfered edge (V-groove or U-groove/double U-shaped). This allows for full penetration welds, which provide maximum joint strength and durability.
In contrast, socket welds (SW welds) do not require groove cutting. The pipe is simply inserted into the socket and fillet welded around the hub. This reduces preparation time but also limits the depth of weld fusion.
Welded seams are a combination of butt, fillet, plug, slot and end welds. Fillet welds, plug welds, slot welds, and end welds.
Butt welds produce a continuous, smooth seam between two pipes, minimizing turbulence and pressure loss within the piping system.
Socket weld seams create internal shoulders that may trap residue or promote flow disruption, which is why socket welds are rarely used in high-purity or food-grade applications.
Butt weld fittings have a BW end (chamfered for welding) end. Accurate alignment and proper gap control are critical.
Socket weld fittings, however, require a 0.06″ (1.6mm) gap between the pipe and fitting shoulder to allow thermal expansion, as recommended by ASME B31.3.
Socket welds are ideal for pipe sizes up to 2 inches (DN50). They offer quick assembly without complex equipment.
Butt welds are typically used for pipes 2 inches and larger, especially where long-term durability and weld inspection are required.
Socket welding is commonly found in hydraulic lines, low-to-medium pressure piping, and tight spaces such as instrument air and oil systems.
Butt welds are used in high-pressure systems, such as oil & gas, petrochemical, nuclear, and power generation plants. They comply with more stringent codes such as ASME Section IX.
The butt weld has full penetration through the material thickness. This avoids lack of fusion defects. It lowers the stress concentration factor (Kt) to below 1.5. The weld strength equals the base metal strength (100% strength efficiency). It meets the ASME B31.3 standard for “full strength joints.” Butt welds are used in high-pressure systems, up to Class 2500 with design pressures of 10,000 psi.
Socket welds rely on fillet weld geometry. There is a risk of lack of fusion at the root. This causes a high stress concentration factor (Kt ≥ 2.8). The strength efficiency is only 45% to 60%. Pressure resistance depends greatly on weld profile and root gap. The actual burst pressure is usually less than 50% of that of butt welds.
Socket welds can create crevices between the pipe and fitting, which may become corrosion initiation sites, especially in chloride-rich or acidic environments.
Butt welds provide a smooth transition without a gap, making them ideal for corrosive service or when corrosion resistance in welds is critical (e.g., stainless steel process lines).
Socket welding is more cost-effective in terms of installation labor and equipment, especially for smaller pipe diameters.
Butt welding requires more skilled labor, precise alignment, and post-weld inspection, making it more expensive upfront—but potentially more cost-effective over the long term in demanding environments.
Weld quality inspection generally includes destructive and non-destructive testing. Commonly used non-destructive tests include: appearance inspection, penetrant testing (penetrant testing PT, magnetic particle testing MT, ultrasonic testing UT, and radiographic testing RT).
Butt welds are typically subjected to non-destructive testing (NDT) such as radiographic (RT) or ultrasonic testing (UT) to validate weld integrity.
Socket welds are visually inspected or tested using dye penetrant (PT) or magnetic particle testing (MT), as internal crevice access is limited. Before penetration testing, there must be no rust, welding slag, welding spatter and various protective layers on the weld surface; before magnetic particle testing, there must be no grease, dirt, welding slag, welding spatter or other substances that adhere to magnetic particles on the weld surface and within 25mm on both sides. So as not to affect the test results.
For critical service, ASME B31.1 or B31.3 often mandates full inspection for butt welds, whereas socket welds may be restricted to non-critical areas.
Butt welds (e.g., V-groove with 60° bevel) achieve stress concentration factors (Kt) below 1.5 through smooth weld reinforcemen. This makes them preferable in high-temperature and high-pressure pipelines where thermal expansion and contraction occur frequently. In steam lines operating at 600°F, butt welds demonstrate superior fatigue life due to lower notch sensitivity compared to socket welds, which tend to concentrate thermal stress at the weld toe.
Socket welds may accumulate stress at the weld toe and socket interface, which, under repeated heating/cooling, can initiate cracks or fatigue failures.
Choosing between socket welds and butt welds depends on the piping system’s design, pressure class, and environmental demands.
If you’re working with sw welding in hydraulic setups or compact systems, socket welding offers faster, easier joints. For bw end connections in critical systems like oil refineries, butt weld fittings are often the better choice.
Both socket welding and butt welding offer reliable ways to join pipes, but each has its own strengths and limitations. Understanding welding joint types like fillet weld vs butt weld, along with practical considerations such as weld stress distribution, installation cost, and corrosion resistance in welds, helps ensure the success of your piping system.
Always refer to ASME B16.11, ANSI B16.9, and relevant project codes when selecting fittings or specifying weld types. And remember—the strength of your entire pipeline often comes down to the quality of a single weld.
